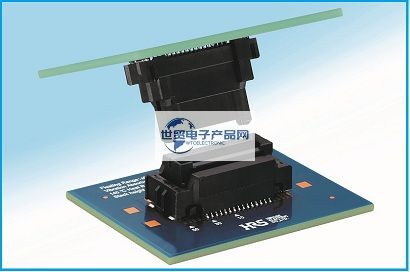

HRS|Hirose|Hirose|Hirose Connectors FX26 Series 1.0mm Pitch Floating Board-to-Board Connectors Introduction and Model Number Details

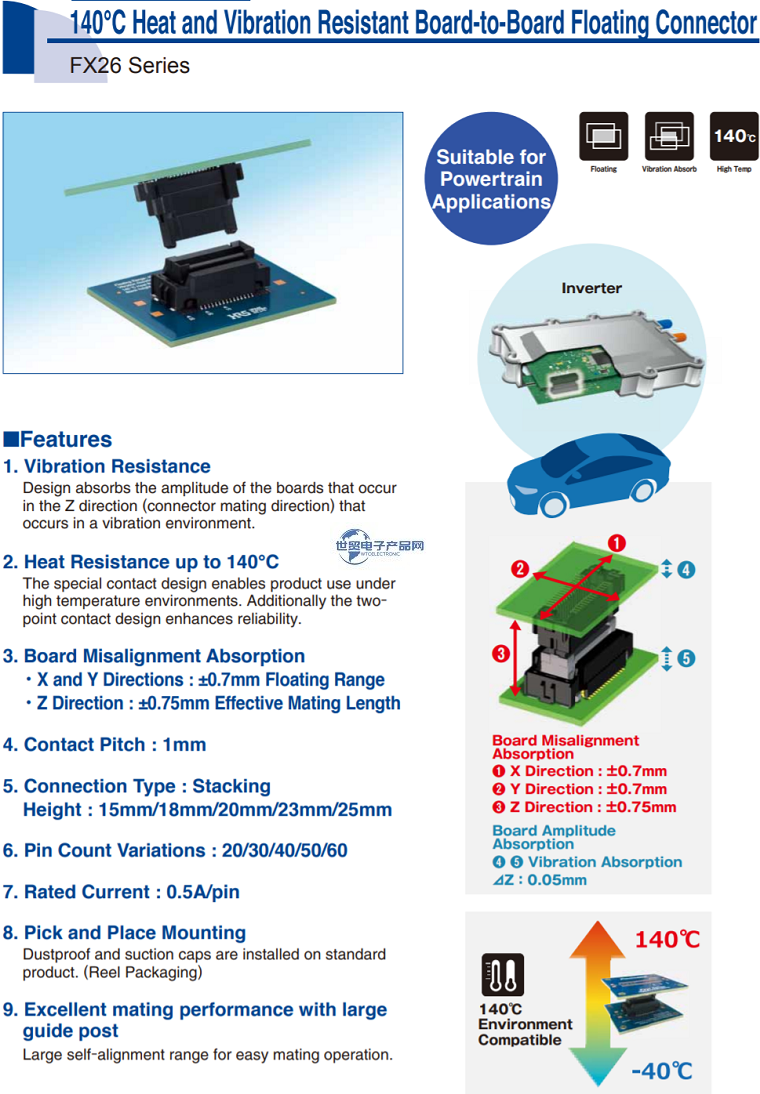

HRS | Hirose | Hirose Connector FX26 series 1.0mm pitch floating board-to-board connector product is a: 140 ℃ heat-resistant and vibration-resistant board-to-board floating connector; Its main features are: 1. Vibration resistance 2. Circuit board dislocation absorption X and Y direction: 0.7 mm floating range Z direction: 0.75 mm effective fit length 4. Contact spacing: 1 mm 5. Connection type: Stack height: 15 mm/18 mm/20 mm/23 mm/25 mm 6. Pin number change: 20/30/40/50/60 7. Rated current: 0.5A/pin 8. Pick and place installation 9. Excellent performance with large guide post.

1. HRS | Hirose | Hirose Connector FX26 Series 1.0mm Pitch Floating Board-to-Board Connector Product No./Model List:

-2. HRS | Hirose | Hirose Connector FX26 Series 1.0mm Pitch Floating Board-to-Board Connector Product Description or Illustration:

--------------------3、 Brief introduction to the platform and sales products of the World Trade Electronic Products Network: The World Trade Electronic Products Network acts as an agent to sell [Hirose Connector-HRS | Hirose | floating board-to-board connector FX26 series connector] and all (material number/model) connector products in the table list of Item 1; Our company specializes in agency/production/sales of various { connector | harness | cable products }; if you have relevant [connector | harness | cable products] procurement/purchase needs or want to buy/know what connector | harness | cable product solutions we can provide, please contact our business personnel below; If you have relevant [connector | harness | cable products] sales/resources and promotion needs, please click "→ Business Cooperation ←" to negotiate with the specialist!
