Connector for AGV/AMR
With the penetration of Industry 4.0, the development of intelligent factories, the popularity of manufacturing plants and e-commerce, the cargo throughput of logistics warehouses continues to increase, making the demand for AGV/AMR for unmanned cargo handling increasingly large. Recently, it has been widely used in various uses such as express delivery, security, cleaning, and food delivery robots, and its functions are getting higher and higher. Starting from internal connectors such as board-to-board connectors, Hirose Electric has also introduced connectors that can be used in AGV/AMR, such as power connection connectors for batteries and motors. The product variety is rich and can be selected according to the customer\'s use.
Difference Between AGV and AMR
What's the Difference
AGV and AMR, which seem to be the same, are actually classified according to driving mode and moving range.
AGV: Automated Guided Vehicle
Walk along a track such as a magnetic stripe on the ground. Only move on the route set in advance. ・ Track laying is required, man-hours are required for introduction and change of business areas ・ Image of vehicles

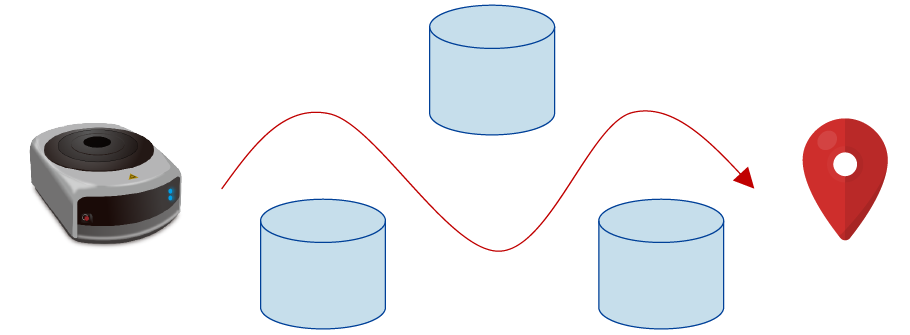

AMR：Autonomous Mobile Robot
(Autonomous Mobile Robot)
Automatically calculate the destination route (unguided and non-guided exercise mode). Detect people and obstacles and avoid them. Easy to cope with changes in business areas, etc. Robot image collaborating with humans
Pursuing highly functional connectors
What's the high functionality
In recent years, AGV/AMR has not only been used for item handling in factories and warehouses, but also flexibly used in express delivery, security, cleaning, food delivery robots, etc. Due to such high-functionality use, the number of components equipped such as cameras and LiDAR has increased, and wiring saving and space saving inside the machine have become a problem.
In addition, it is also required to have firmness capable of withstanding vibration during walking, as well as waterproofness and high-speed transmission properties in other cases. For these various needs, connector products can meet them.
Connectors corresponding to different connection points
Different connection
Products at a glance
Hirose Product
CX
Series
It is a highly reliable product that complies with the next generation USB standard \"USB Type-C ™\". In the future, standard interfaces are expected to be widely used in a variety of devices from the consumer market to industrial equipment and automotive markets. There are many kinds of socket and plug wiring harnesses, and you can choose the one that best suits your needs.
ix
Industrial™
Series
Small Ethernet connector with about 75% less volume than the previous RJ45. It is small and can withstand 5,000 times of plugging and unplugging, and has the characteristics of strong firmness and strength. It also supports Cat.6A (10Gbps) Ethernet, which can provide stable high-speed transmission. A new generation of small Ethernet connectors compliant with IEC standards.
LF
Series
Small firm round Ethernet connector in metal housing. It supports the waterproof specifications of IP67/IP68 in the fitted state, so it can be used with confidence even in condensation and wet environments. Moreover, while being small and reliable, it ensures a noise-proof shielding structure. It can carry out rich selections such as vertical connection, horizontal connection, welding connection, pressing connection, power signal compound type, etc.
DF60
Series
Board-to-wire connectors for internal power supports larger 65A. Through the complete locking structure and 5-point contact structure, it has high contact reliability. It also has finger protection structure and fool-proof key expansion type for safe use. You can choose from 3 connection types: vertical, horizontal, trunk, 3 connection types.
DF51
DF51K
Series
Larger support for 2A, 2mm pitch board-to-wire connectors. Fully locked to ensure a stable connection. With a wealth of options, you can choose vertical, horizontal and relay connections from the terminal arrangement of 1-column and 2-column. According to the use, side lock DF51 series and center lock DF51K series are available.
FX30B
Series
This is a 13 ~ 25A board-to-board connector developed for power supplies. It adds a special position offset absorption feature that does the same thing as the float feature. Features independent 4-point contact spring construction for excellent contact reliability. We have also obtained safety standards (UL/C-UL, TÜV).
vehicle counterpart
Automotive Supplies
POK15
POK16
Series
Low high coaxial connectors for automotive use.
It supports high frequencies of 3GHz.
There is a clear locking feel, which can prevent half-fitting.
In addition, plate-to-line (POK15) and plate-to-plate (POK16) versions are also available.
Suitable for applications such as vehicle cameras and vehicle antennas
HVH-280
(Waterproof)
Series
A heat-resistant and vibration-resistant small power interface connector. In the fitted state, it can reach IPX9K (high pressure cleaning) waterproof rating. It can even be used in harsh environments. Furthermore, the built-in chimera detection circuit ensures the safety of the operator.
HVH-280
(Non-waterproof)
Series
125 °C heat-resistant and high current-supporting internal connection power connector for vehicle. The 3-point contact terminal structure achieves high contact force, prevents misinsertion, and ensures robustness. The secondary catch holds the cable firmly in place. Reduces cable vibration during vibration.
ZE05
Series
Board-to-wire Ethernet connector for vehicle use. 0.5-type terminal, 2mm pitch and miniaturization of components realize the space-saving design. It has passed strict vehicle testing and can withstand high temperatures of 125 °C. Moreover, the terminal has a unique three-contact structure with two springs, which has high contact reliability and vibration resistance.
FX23
FX23L
Series
Floating board-to-board connectors with 0.5 mm pitch. With a large floating amount of ± 0. 6mm on the XY axis, multiple installations can be realized by robots. Supports 8 + Gbps high-speed transmission, with 3A/pin power terminal. The stack height is 8 ~ 30mm, and the selection is rich.
FX26
Series
The FX26 series is a high-quality automotive-grade connector that can support 140 °C and is developed to be used even in the engine compartment. Anti-vibration, floating structure, small size (1mm pitch) and double contacts at the contact parts, it is a product that can be used with confidence even in continuous vibration and high temperature environment of 140 °C.
