Panasonic connector - offering genuine Panasonic AXT580124 connector and substitutes

Categorization:Brand Connector

Specializing in the sales of: Connectors | Wire Harness | Cable Products

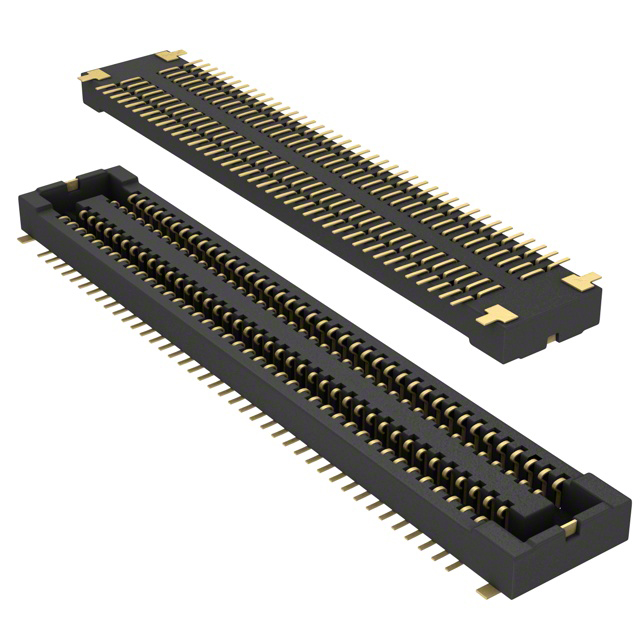

Panasonic connector - Provide product overview of Panasonic AXT580124 connector

AXT580124ManufacturerPanasonic
Manufacturer Part NumberAXT580124
Product DescriptionCONN SOCKET 80POS SMD GOLD, 80-position connector socket, shell contact surface mount type gold plated



Panasonic connector - Provide product properties of Panasonic AXT580124 connector

TypeDescription
CategoryConnector, interconnect device
Rectangular connector
Array, edge type, sandwich type (plate to plate)
ManufacturerPanasonic Electric Works
SeriesF4S
Connector typeSocket, shell contact
Needle count80
Spacing0.016"(0.40mm)
Arrangement of numbers2
Installation typeSurface Mount Technology
FeatureFixed weld end
Touch head surface treatmentGilding
Contact surface treatment thickness-
Joint stacking height1mm
Board height0.038"(0.97mm)



Panasonic connector - Providing a brief introduction to the Panasonic AXT580124 connector product (series)

Panasonic AXT580124 is a high-density board-to-board connector with 80 pins, belonging to the F4S series, and is designed specifically for ultra-thin electronic devices. Its 0.4mm pitch dual-row structure ensures efficient and stable signal transmission, suitable for high-precision application scenarios such as smart devices, medical instruments, and industrial automation. The connector features a surface mount (SMD) design and is equipped with fixed welding tails to enhance installation stability, suitable for automated production and improving assembly reliability. Its outer casing contact structure provides excellent mechanical strength and electrical contact performance, while the gold-plated contact process effectively improves corrosion resistance and conductivity, ensuring long-term stable connections. This model supports a 1mm mating stack height and has a board height of only 0.97mm, greatly optimizing space utilization and meeting the needs of ultra-thin electronic devices. With precise manufacturing technology and excellent performance, the Panasonic AXT580124 connector is an ideal choice for interconnection of high-performance electronic devices.



Panasonic connector - Provide Panasonic AXT580124 connector documentation and media:

Resource TypeLink
Specification SheetPlease contact the person listed at the bottom of the article for more information.



Panasonic connector - Provides genuine Panasonic AXT580124 connector and related replacement product information:

We focus on the stock supply of (Panasonic) brand connectors, committed to providing customers with high-quality and reliable connection solutions. Our products include original genuine products and high-performance alternatives, which have undergone strict testing to ensure stability and efficiency. Welcome to contact us through the contact information below the document page!
