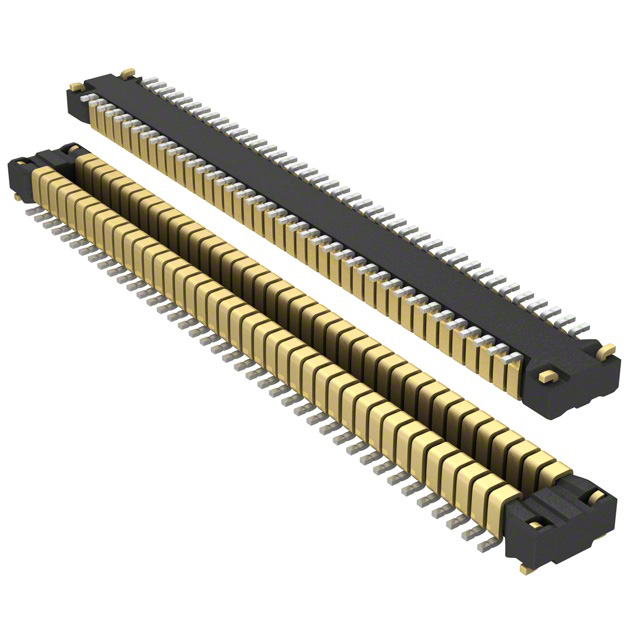

Panasonic connector - Providing a product overview of Panasonic AXT680124 connector
 | Manufacturer | Panasonic |
| Manufacturer Part Number | AXT680124 | |
| Product Description | CONN HDR 80POS SMD GOLD, 80-position connector terminal, central contact with surface mount type gold plated |
Panasonic connector - Provide product attributes for Panasonic AXT680124 connector
| Type | Description |
| Category | Connector, interconnect device |
| Rectangular connector | |
| Array, edge type, sandwich type (board-to-board) | |
| Manufacturer | Panasonic Electric Works |
| series | F4S |
| Connector type | Connector, central contact strip |
| Needle count | 80 |
| Spacing | 0.016"（0.40mm） |
| Row number | 2 |
| Installation Type | Surface Mount Technology |
| Feature | Fixed weld tail |
| Touch surface treatment | Gold plated |
| Contact surface treatment thickness | - |
| Combined stacking height | 1mm |
| Board height | 0.033"（0.84mm） |
Panasonic connector - Provide a brief introduction to the Panasonic AXT680124 connector product (series)
Panasonic AXT680124 is a high-density board-to-board connector with 80 pin positions, belonging to the F4S series, designed specifically for ultra-compact electronic devices. Its 0.4mm pitch dual-row structure ensures efficient and stable signal transmission, widely used in mobile devices, medical instruments, and industrial automation fields. The connector adopts surface mount (SMD) design and is equipped with fixed welding tails to enhance assembly stability, suitable for automated production and improving assembly accuracy. The central contact with a structure provides excellent electrical contact performance, while the gold-plated contact process effectively improves corrosion resistance and conductivity, ensuring long-term reliability. Its mating stack height is only 1mm, and the board height is only 0.84mm, greatly optimizing space utilization, meeting the needs of ultra-thin devices. With outstanding structural design and high performance, the Panasonic AXT680124 connector is an ideal choice for interconnection of high-end electronic devices.
