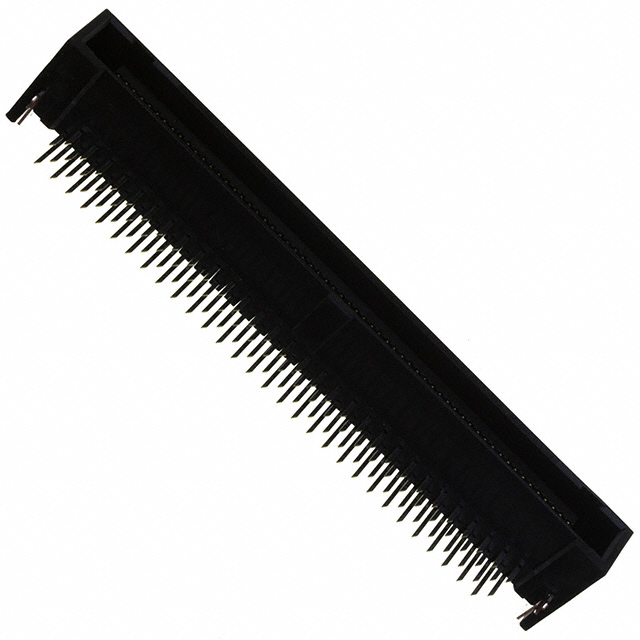

JAE TX25-120P-LT-H1E connector product overview:
 | Manufacturer | JAE |
| Manufacturer Part Number | TX25-120P-LT-H1E | |
| Product Description | CONN PLUG 120POS R/A GOLD,120-position connector plug, central contact with through-hole, right-angle gold-plated |
JAE TX25-120P-LT-H1E connector product attributes:
| Type | Describe |
| Category | Connector, interconnect device |
| Rectangular connector | |
| Array, edge type, sandwich type (plate-to-plate) | |
| Manufacturer | JAE Electronics |
| Series | TX25 |
| Packaging | Tray |
| Connector type | Plug, central contact with |
| Acupuncture points | 120 |
| Spacing | 0.050"（1.27mm） |
| Row number | 2 |
| Installation type | Through-hole, right angle |
| Feature | Board lock |
| Touch head surface treatment | Gilding |
| Touch head surface treatment thickness | 4.00µin（0.100µm） |
| Combined stacking height | - |
| Board height | 0.354"（9.00mm） |
| Basic product number | TX25-120 |
JAE TX25-120P-LT-H1E connector product (series) introduction:
JAE Electronics TX25 series rectangular connectors are high-density board-to-board connectors designed for high-speed signal transmission in complex electronic equipment. This series adopts a plug structure with a central contact design to ensure stable and reliable electrical connections. The TX25 series connectors have 120 pin positions, a double-row layout with a spacing of 1.27mm, and are suitable for applications requiring high-density signal transmission. The through-hole right-angle installation method facilitates integration with PCB boards, providing a robust mechanical connection. It also features a board lock characteristic to enhance connection stability and prevent accidental loosening. The contacts are gold-plated with a thickness of 4.00µin (0.100µm), improving corrosion resistance and signal transmission performance. The board height of this series is 9.00mm, suitable for various industrial equipment, communication systems, and other electronic products with high reliability requirements.
JAE TX25-120P-LT-H1E connector document and media:
| Resource type | Link |
| Specification Sheet | Board-To-Board Connectors |
JAE TX25-120P-LT-H1E connector genuine | substitute product description:
We focus on the spot supply of (JAE) brand connectors, committed to providing customers with high-quality and reliable connection solutions. Our products include original genuine and high-performance alternatives, strictly tested to ensure stability and efficiency. Welcome to contact us through the contact information below the document page!
