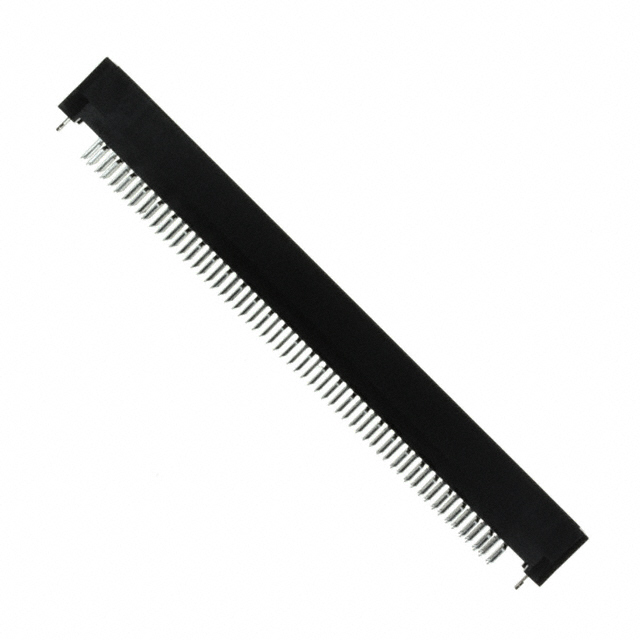

JAE TX25-120P-6ST-H1E connector product overview:
 | Manufacturer | JAE |
| Manufacturer Part Number | TX25-120P-6ST-H1E | |
| Product Description | CONN PLUG 120POS VERT GOLD,120 position connector plug, central contact with through hole gold plated |
JAE TX25-120P-6ST-H1E connector product attributes:
| Type | Description |
| Category | Connector, interconnect device |
| Rectangular connector | |
| Array, edge type, sandwich type (plate-to-plate) | |
| Manufacturer | JAE Electronics |
| Series | TX25 |
| Packaging | Tray |
| Connector type | Plug, central contact with |
| Needle count | 120 |
| Spacing | 0.050"（1.27mm） |
| Row number | 2 |
| Installation Type | Through-hole, right angle |
| Feature | Board lock |
| Touch head surface treatment | Gold plated |
| Surface treatment thickness of the contact surface | 4.00µin（0.100µm） |
| Combined stacking height | - |
| Board height | 0.354"（9.00mm） |
| Basic product number | TX25-120 |
Introduction to JAE TX25-120P-6ST-H1E connector product (series):
JAE Electronics' TX25 series rectangular connector is a high-density board-to-board connector suitable for electronic devices requiring stable signal transmission. This series adopts a plug-in structure with a central contact design to ensure reliable electrical connections and is widely used in industrial equipment, communication systems, and other precision electronic applications. The TX25 series connectors are equipped with 120 pin positions, a double-row design with a spacing of 1.27mm, providing a compact and efficient signal connection solution. Its through-hole mounting method ensures durability, while the board locking feature enhances connection stability, prevents accidental disconnection, and improves equipment reliability. The contact surfaces are gold-plated with a thickness of 4.00µin (0.100µm), improving corrosion resistance and conductivity to ensure long-term stable signal transmission. This series supports mating stack heights of 12mm, 16mm, and 18mm to meet different design requirements, with a board height of 9.20mm, suitable for compact equipment design.
JAE TX25-120P-6ST-H1E Connector Document and Media:
| Resource type | Link |
| Specification Sheet | Board-To-Board Connectors |
JAE TX25-120P-6ST-H1E connector genuine | replacement product related description:
We focus on the现货 supply of (JAE) brand connectors, committed to providing customers with high-quality and reliable connection solutions. Our products include original genuine and high-performance alternatives, which have undergone strict testing to ensure stability and efficiency. Welcome to contact us through the contact information below the document page!
