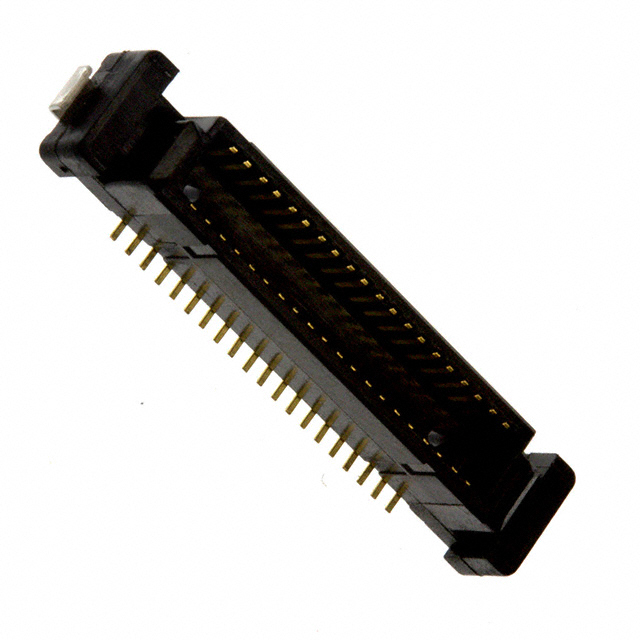

JAE KX15-40K3DE connector product overview:
 | Manufacturer | JAE |
| Manufacturer Part Number | KX15-40K3DE | |
| Product Description | CONN PLUG 40POS SMD GOLD, 40 position connector plug, central contact with surface mount type gold plated |
JAE KX15-40K3DE connector product attributes:
| Type | describe |
| Category | Connector, interconnect device |
| Rectangular connector | |
| Array, edge type, sandwich type (panel-to-panel) | |
| Manufacturer | JAE Electronics |
| Series | KX15 |
| Packaging | Tray |
| Connector type | Plug, central contact with |
| Needle count | 40 |
| Spacing | 0.031"（0.80mm） |
| Row number | 2 |
| Installation type | Surface mount technology |
| Feature | Guide rail, fixed weld end |
| Contact surface treatment | Gilded |
| Contact surface treatment thickness | 4.00µin（0.100µm） |
| Joint stacking height | 5mm，8mm，11mm，14mm，17mm |
| Board height | 0.187"（4.75mm） |
JAE KX15-40K3DE connector product (series) introduction:
JAE Electronics KX15 series rectangular connector is a high-performance board-to-board connector, designed for compact electronic devices, providing stable and reliable signal transmission. This series adopts a plug structure with a central contact design, suitable for precision electronic applications such as industrial control, communication equipment, and consumer electronics products. The KX15 series connectors have 40 pin positions, a double-row layout, and a spacing of 0.80mm, enabling efficient connections in limited space. Its surface mount design facilitates automated production and improves assembly efficiency. The product features board guide and fixed welding tail characteristics, ensuring alignment accuracy and welding stability, enhancing the durability and reliability of the equipment. The contacts are plated with 4.00µin (0.100µm) gold, improving antioxidant capacity and signal transmission performance. This series supports mating stack heights of 5mm, 8mm, 11mm, 14mm, and 17mm, meeting different design requirements, with a board height of only 4.75mm, making it very suitable for ultra-thin devices.
