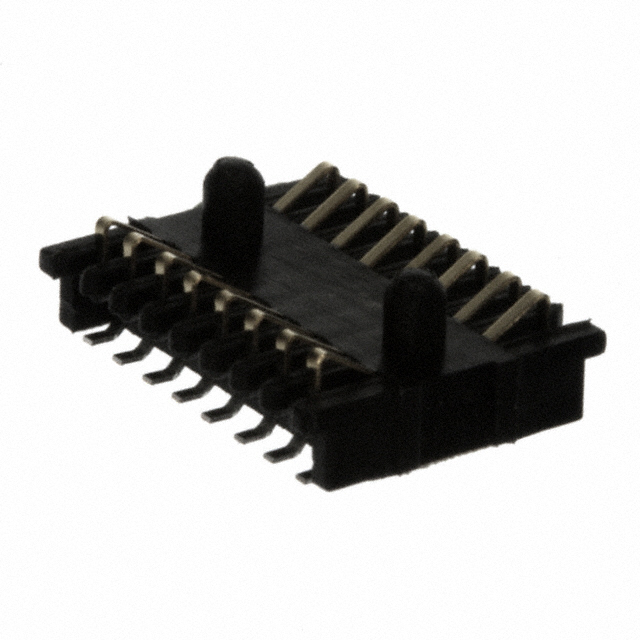

KYOCERA 009158016020062 connector product overview:
 | Manufacturer | KYOCERA |
| Manufacturer Part Number | 009158016020062 | |
| Product Description | CONN STACKING, 16 Position Connector Stacking Compression Surface Mount Gold Plated |
KYOCERA 009158016020062 connector product attributes:
| Type | Description |
| Category | Connector, interconnect device |
| Rectangular connector | |
| Array, edge type, sandwich type (board-to-board) | |
| Manufacturer | KYOCERA AVX |
| Series | MOBO® 9158 |
| Packaging | Coil (TR) |
| Connector type | Stacking compression |
| Needle positions | 16 |
| Spacing | 0.039"（1.00mm） |
| Row number | 2 |
| Installation type | Surface Mount Technology |
| Contact surface treatment | Gold plated |
| Contact surface treatment thickness | 10.0µin（0.25µm） |
| Combined stacking height | 1.9mm ~ 2.1mm |
| Board height | 0.071"（1.80mm） |
KYOCERA 009158016020062 connector product (series) introduction:
KYOCERA AVX MOBO® 9158 series connector is a high-performance rectangular connector, specifically designed for board-to-board applications. It utilizes a stacked compression connection method and is suitable for high-density electronic devices. This product features 16 pin positions with a spacing of 1.00mm, a double-row design that enhances the stability and reliability of signal transmission. The series connectors use surface mount technology (SMT) installation, with a board height of only 1.80mm. The mating stack height can be adjusted within a range of 1.9mm to 2.1mm to meet the spatial requirements of different devices. The contact surfaces are gold-plated, with a plating thickness of 10.0µin (0.25µm), providing excellent conductivity, wear resistance, and corrosion resistance to ensure long-term stable electrical performance. The MOBO® 9158 series connectors are widely used in industrial equipment, medical electronics, consumer electronics, and other fields, providing an ideal solution for applications that have strict requirements for high reliability, miniaturization, and efficient connection solutions.
KYOCERA 009158016020062 connector documentation and media:
| Resource type | Link |
| Specification Sheet | 00-9158 Series Datasheet |
