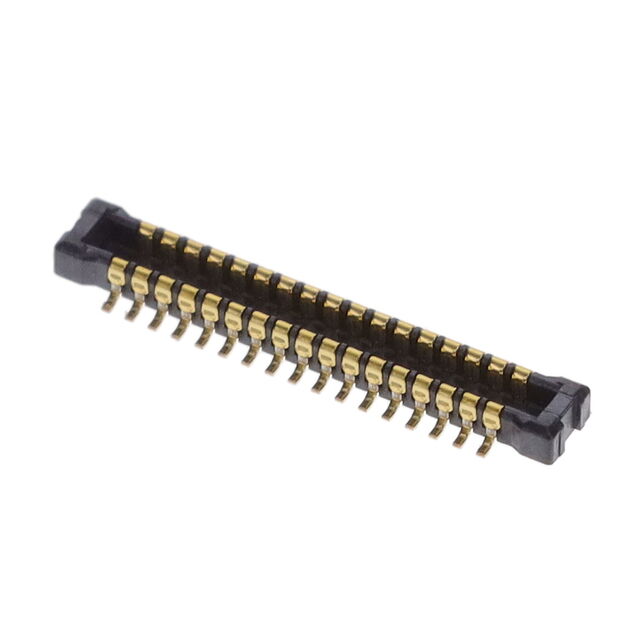

KYOCERA 145804034020829 Connector Product Overview:

145804034020829+ManufacturerKYOCERA
Manufacturer Part Number145804034020829+
Product DescriptionCONN PLUG 34POS SMD GOLD, 34 position connector plug, housing contact surface mount type gold plated



KYOCERA 145804034020829 connector product attributes:

TypeDescription
CategoryConnector, interconnect device
Rectangular connector
Array, edge-type, sandwich-type (plate-to-plate)
ManufacturerKYOCERA AVX
SeriesSuper Microleaf 5804, Kyocera
PackagingCoil (TR)
Connector typePlug, terminal bushing
Needle count34
spacing0.016"(0.40mm)
Row number2
Installation typeSurface Mount Technology
Contact surface treatmentGilded
Combined stacking height0.9mm
Board height0.030"(0.75mm)



KYOCERA 145804034020829 connector product (series) introduction:

KYOCERA AVX Super Microleaf 5804 series connectors are high-density rectangular connectors suitable for board-to-board connection applications. This product is of plug type, with an outer shell contact design, featuring 34 pins and a pitch of 0.4mm, which can meet the needs of precision electronic equipment for compact connection solutions. The connector uses surface mount technology (SMT), with a board height of only 0.75mm and a mating stack height of 0.9mm, suitable for ultra-thin electronic devices. The contact surface is gold-plated to ensure excellent conductivity, wear resistance, and anti-oxidation capabilities, thereby enhancing the stability and service life of signal transmission. The Super Microleaf 5804 series is widely used in smart terminal devices, wearable electronics, medical devices, and other high-density electronic products, providing high-quality interconnection solutions for applications requiring high reliability and miniaturized design.



KYOCERA 145804034020829 Connector Documentation and Media:

Resource typeLink
Specification sheet5804 Series Datasheet
