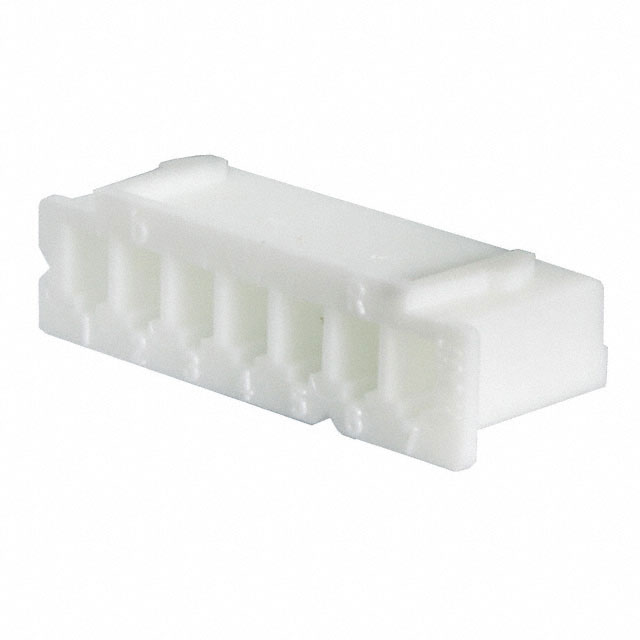

JST Connector - Provide a product overview of JST XHP-7 connectors
 | Manufacturer | JST |
| Manufacturer part number | XHP-7 | |
| Product Description | CONN RCPT HSG 7POS 2.50MM, 7 rectangular connector - Shell Receptacle Natural 0.098" (2.50mm) |
JST connector - providing product attributes of JST XHP-7 connector:
| Type | Description |
| Category | Connector, interconnect device |
| Rectangular connector | |
| Rectangular connector housing | |
| Manufacturer | JST Sales America Inc. |
| Series | XH |
| Connector type | Socket |
| Contact type | Motherboard socket |
| Needle count | 7 |
| Spacing | 0.098"（2.50mm） |
| Row number | 1 |
| Arrangement spacing | - |
| Installation type | Free suspension |
| Touch end connection | Soldering |
| Fastening type | - |
| Color | Natural |
| Characteristics | - |
| Insulating material | Polyamide (PA6), Nylon 6 |
| Working temperature | -25°C ~ 85°C |
| Note | Touchless |
| Basic Product Code | XHP |
JST Connector - Providing an introduction to JST XHP-7 connector products (series)
JST XHP-7 is a 7-pin rectangular connector housing, belonging to the JST XH series, specifically designed for high-reliability circuit connections. The connector features a socket structure, with female contact sockets, and a pitch of 2.50mm (0.098 inch), suitable for a variety of electronic and industrial applications. The product uses polyamide (PA6, nylon 6) insulation material, offering good thermal resistance and mechanical strength to ensure long-term stable performance. Its operating temperature range is from -25°C to 85°C, adaptable to various environmental conditions. The installation method is free-hanging, and the termination method is crimping, convenient for assembly and maintenance. The JST XHP-7, with its miniaturized design, stable electrical performance, and convenient installation method, is widely used in consumer electronics, industrial automation, household appliances, and other fields. The housing is natural color, without contacts, and requires the use of corresponding terminals, making it an ideal choice for precise circuit connections.
JST connector - Provide JST XHP-7 connector documentation and media:
| Resource type | Link |
| Specification Sheet | XH Series Datasheet |
JST connector - Providing genuine JST XHP-7 connector and alternative product related information:
We focus on the现货 supply of (JST) brand connectors, committed to providing customers with high-quality and reliable connection solutions. Our products include genuine and high-performance alternatives, which have been strictly tested to ensure stability and efficiency. Welcome to contact us through the contact information below the document page!
