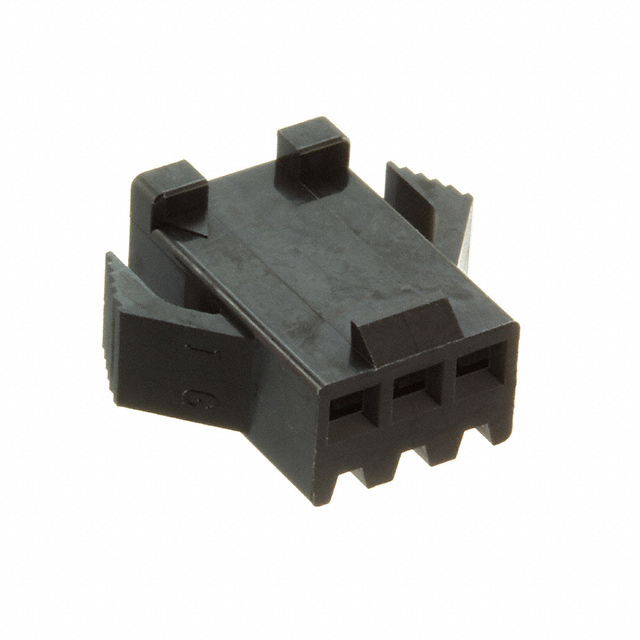

JST Connector - Provide product overview of JST SMP-03V-BC connector
 | Manufacturer | JST |
| Manufacturer Part Number | SMP-03V-BC | |
| Product Description | CONN PLUG HSG 3POS 2.50MM, 3 rectangular connector - Shell plug black 0.098" (2.50mm) |
JST connector - Provide product attributes of JST SMP-03V-BC connector
| Type | describe |
| Category | Connector, interconnect device |
| Rectangular connector | |
| Rectangular connector housing | |
| Manufacturer | JST Sales America Inc. |
| Series | SM |
| Connector type | Plug |
| Touch probe type | Maternal socket |
| Needle count | 3 |
| Spacing | 0.098"（2.50mm） |
| Row numbers | 1 |
| Spacing | - |
| Installation type | Panel installation, snap-in type |
| Contact end termination | Press-fit |
| Fastener types | Locking bolt slide track |
| Color | black |
| Feature | - |
| Insulating material | Polyamide (PA6), Nylon 6 |
| Operating temperature | -25°C ~ 85°C |
| Please provide the text you would like to be translated into English. | Touchless |
JST Connector - Providing product introduction of JST SMP-03V-BC connector series
JST SMP-03V-BC is a 3-position rectangular connector housing, belonging to the JST SM series, specifically designed for compact circuit connections. The connector features a plug structure, with female socket terminals, a pitch of 2.50mm (0.098 inch), and is suitable for electronic devices and industrial applications requiring stable connections. The product utilizes high-strength polyamide (PA6, nylon 6) insulating materials, offering excellent thermal resistance and mechanical strength to ensure long-term stable electrical performance. Its operating temperature range is from -25°C to 85°C, adapting to various environmental conditions. The installation method is panel mount, featuring a snap-in design, with a crimp termination method and equipped with a locking pin slider structure for a secure connection and to prevent accidental disconnection. The JST SMP-03V-BC, with its reliable mechanical locking characteristics, miniaturized design, and convenient installation, is widely used in consumer electronics, industrial automation, home appliances, and other fields. This housing is black, without terminals, and requires the use of corresponding connectors, making it an ideal choice for high-stability circuit connections.
JST connector - Provide JST SMP-03V-BC connector documentation and media:
| Resource type | Link |
| Specification Sheet | SM Series Datasheet |
JST connector - Provide genuine JST SMP-03V-BC connector and related product specifications.
We focus on the现货 supply of (JST) brand connectors, committed to providing customers with high-quality and reliable connection solutions. Our products include genuine products and high-performance alternatives, which have undergone strict testing to ensure stability and efficiency. Welcome to contact us through the contact information below the document page!
