Categorization：Brand Connector

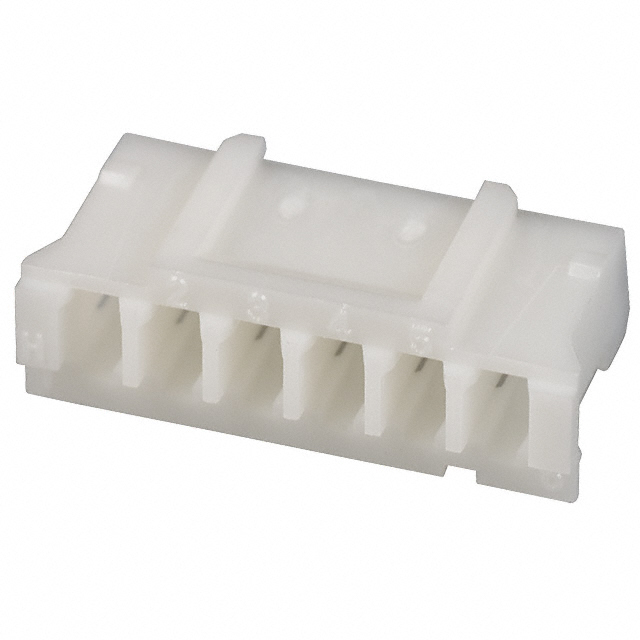

JST connector - Provide an overview of the JST PHR-6 connector product:
 | Manufacturer | JST |
| Manufacturer Part Number | PHR-6 | |
| Product Description | CONN RCPT HSG 6POS 2.00MM, 6 rectangular connector - housing jack natural 0.079" (2.00mm) |
JST connector - Provide product attributes of JST PHR-6 connector:
| Type | describe |
| Category | Connector, interconnection device |
| Rectangular connector | |
| Rectangular connector housing | |
| Manufacturer | JST Sales America Inc. |
| Series | PH |
| Connector type | socket |
| Contact type | Mother shape socket |
| Needle count | 6 |
| Space | 0.079"（2.00mm） |
| Pai shu | 1 |
| Pai ju | - |
| Installation type | Free hanging |
| Terminal connection | Compression joint |
| Fastening type | Unlock |
| Color | Natural |
| Feature | - |
| Insulating material | Polyamide (PA66), nylon 6/6 |
| Working temperature | -25°C ~ 85°C |
| Note | Contactless |
| Basic product number | PHR |
JST connector - Introduction to the JST PHR-6 connector product series
JST PHR-6 is a 6-pin rectangular connector housing, belonging to the JST PH series, and is suitable for compact circuit connection requirements. The connector features a socket design with female socket contacts, with a pitch of 2.00mm (0.079 inch), providing efficient and reliable signal or power connections. The product uses high-strength polyamide (PA66, nylon 6/6) insulating material, offering excellent heat resistance and mechanical strength to ensure long-term stable performance. Its operating temperature range is from -25°C to 85°C, adapting to various electronic and industrial application environments. The installation method is free-hanging, the termination method is crimping, and it is equipped with a pin locking structure to improve connection stability and prevent accidental disconnection. The JST PHR-6, with its miniaturized design, stable electrical performance, and convenient installation method, is widely used in consumer electronics, industrial automation, automotive electronics, and other fields. The housing is natural color, without contacts, and requires matching terminals for use, making it an ideal choice for precision circuit connections.
JST connector - Providing JST PHR-6 connector documentation and media:
| Resource type | Link |
| Specification Sheet | PH Series Datasheet |
JST connector - Provide JST PHR-6 connector genuine | substitute related instructions:
We focus on the stock supply of (JST) brand connectors, committed to providing high-quality and reliable connection solutions for our customers. Our products include original genuine and high-performance alternatives, rigorously tested to ensure stability and efficiency. Welcome to contact us through the contact information below the document page!
