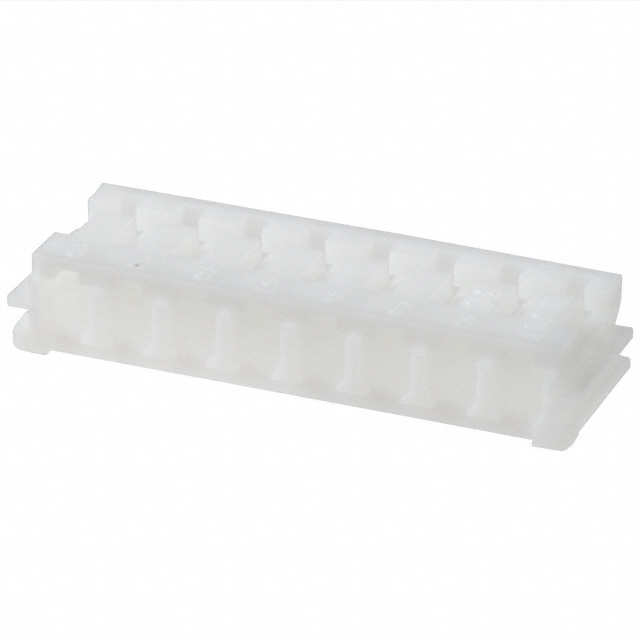

JST connector - Providing an overview of JST EHR-8 connector products
 | Manufacturer | JST |
| Manufacturer Part Number | EHR-8 | |
| Product Description | CONN RCPT HSG 8POS 2.50MM, 8 rectangular connector - shell plug natural 0.098" (2.50mm) |
JST connector - Provide product attributes of JST EHR-8 connector:
| Type | Description |
| Category | Connector, interconnect device |
| Rectangular connector | |
| Rectangular connector housing | |
| Manufacturer | JST Sales America Inc. |
| Series | EH |
| Connector type | Power outlet |
| Contact type | Maternal socket |
| Needle count | 8 |
| Spacing | 0.098"（2.50mm） |
| Row number | 1 |
| Arrangement distance | - |
| Installation type | Free suspension |
| Touch end connection | Compression joint |
| Fastener type | - |
| Color | Natural |
| Characteristics | - |
| Insulating material | Polyamide (PA66), nylon 6/6 |
| Operating temperature | -25°C ~ 85°C |
| Note | Touchless |
JST connector - Introducing the JST EHR-8 connector product series introduction:
JST EHR-8 is an 8-bit rectangular connector housing, belonging to the JST EH series, specifically designed for compact circuit connections. The connector features a socket structure, with female connector contacts, a pitch of 2.50mm (0.098 inch), and is suitable for a variety of electronic and industrial applications. The product is made of high-strength polyamide (PA66, nylon 6/6) insulating material, offering excellent heat resistance and mechanical strength, ensuring long-term stable electrical performance. Its operating temperature range is from -25°C to 85°C, adapting to various environmental conditions. The installation method is free-hanging, and the termination method is crimping, providing a convenient assembly method to improve production efficiency. The JST EHR-8, with its reliable connection performance and durability, is widely used in consumer electronics, industrial control, automotive electronics, and other fields. The housing is natural color, without contacts, and requires matching terminals for use, making it an ideal choice for compact circuit connections.
JST connector - providing JST EHR-8 connector documentation and media:
| Resource type | Link |
| Specification Sheet | EH Series Datasheet |
JST connector - Provides genuine JST EHR-8 connector and alternative product specifications:
We focus on the现货 supply of (JST) brand connectors, committed to providing customers with high-quality and reliable connection solutions. Our products include genuine and high-performance alternatives, which have been strictly tested to ensure stability and efficiency. Welcome to contact us through the contact information below the document page!
