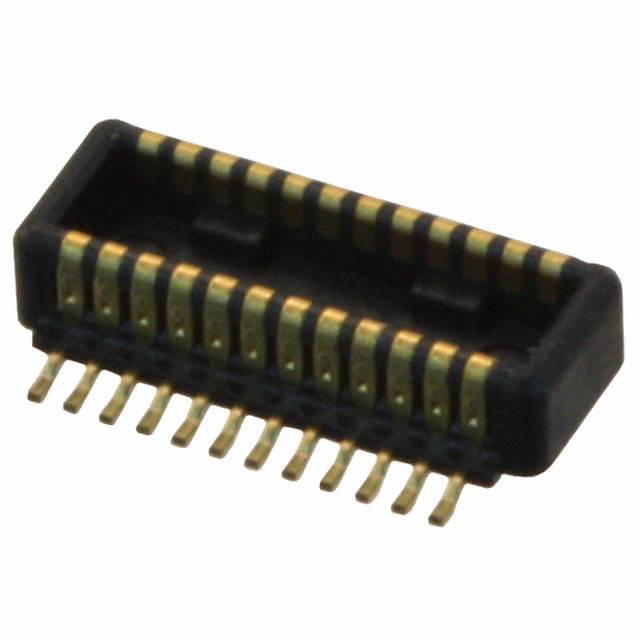

Panasonic connector - Product overview of Panasonic AXK824145WG connector
![]() | Manufacturer | Panasonic |
Manufacturer's part number | AXK824145WG | |
Product Description | CONN HDR 24POS SMD GOLD, 24 position connector socket, outer shell contact surface mount type gold plated |
Panasonic Connector - Provide product properties for Panasonic AXK824145WG connector
Type | Description |
Category | Connector, interconnect device |
Rectangular connector | |
Array, edge type, sandwich type (plate-to-plate) | |
Manufacturer | Panasonic Electric Works |
Series | P4 |
Connector type | Connector, shielded contact |
Needle count | 24 |
spacing | 0.016"(0.40mm) |
Row number | 2 |
Installation type | Surface mount technology |
Characteristic | - |
Contact surface treatment | Gold plating |
Touch surface treatment thickness | - |
Joint stacking height | 1.5mm,2mm,2.5mm |
Board height | 0.052"(1.32mm) |
Basic Product Number | AXK824145 |
Panasonic Connector - Providing an introduction to the Panasonic AXK824145WG connector product (series)
Panasonic AXK824145WG is a high-precision board-to-board connector belonging to the P4 series, designed specifically for compact electronic devices. The connector features a 0.40mm pitch, 24 shielded contact points, and a double-row layout, ensuring stable signal transmission and excellent anti-interference performance. The product supports surface mount technology (SMD), is suitable for automated production, and helps improve assembly efficiency. The contacts are gold-plated, effectively reducing contact resistance and enhancing antioxidant capability, ensuring long-term stable electrical connections. AXK824145WG offers three mating stack heights of 1.5mm, 2mm, and 2.5mm, with a board height of 1.32mm, making it suitable for applications with high requirements for space and reliability, such as smart devices, industrial control, and medical electronics. With its miniaturization, high-density connection, and excellent durability, the connector provides a reliable interconnection solution for modern electronic devices.
Panasonic connector - Provide Panasonic AXK824145WG connector documentation and media:
Resource type | Link |
Specification Sheet | Please contact the contact person below the article page to obtain it. |
Panasonic connector - Providing genuine Panasonic AXK824145WG connector and related product specifications.
We focus on the spot supply of (Panasonic) brand connectors, committed to providing customers with high-quality and reliable connection solutions. Our products include genuine original and high-performance alternatives, strictly tested to ensure stability and efficiency. Welcome to contact us through the contact information below the document page!
