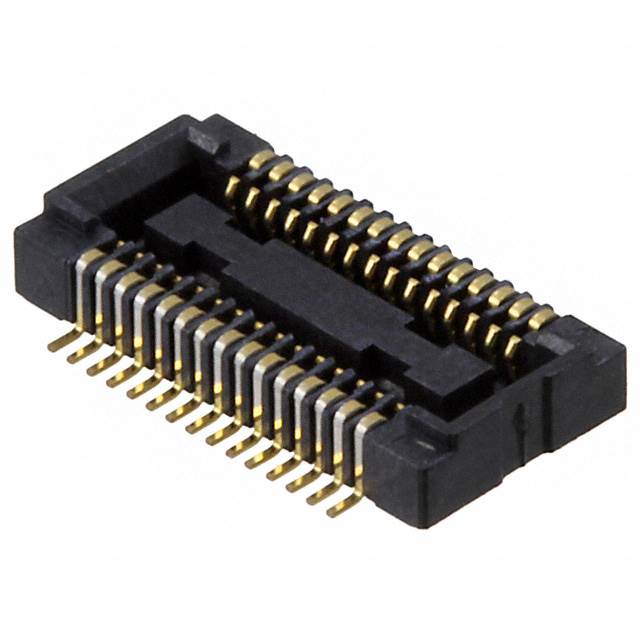

Panasonic connector - Provide product overview of Panasonic AXK730147G connector
 | Manufacturer | Panasonic |
| Manufacturer part number | AXK730147G | |
| Product Description | CONN SOCKET 30POS SMD GOLD, 30 position connector socket, center strip, outer edge contacts surface mount type gold plated |
Panasonic connector - Provide product attributes of Panasonic AXK730147G connector
| Type | describe |
| Category | Connector, interconnection device |
| Rectangular connector | |
| Array, edge type, sandwich type (plate-to-plate) | |
| Manufacturer | Panasonic |
| Series | P4 |
| Connector type | Socket，Center Strip，Outer Edge Contacts |
| Needle count | 30 |
| Spacing | 0.016"（0.40mm） |
| Row number | 2 |
| Installation Type | Surface Mount Technology |
| Characteristic | - |
| Contact surface treatment | Gold-plated |
| Touch surface treatment thickness | - |
| Combined stacking height | 1.5mm |
| Board height | 0.059"（1.50mm） |
| Basic product number | AXK730147 |
Panasonic connector - Introducing the Panasonic AXK730147G connector product (series) overview:
Panasonic AXK730147G is a high-performance board-to-board connector belonging to the P4 series, designed for compact electronic devices. The connector features a 0.40mm pitch and has 30 pins, utilizing a center strip and outer edge contacts design to ensure stable signal transmission and good electrical connection. The product is mounted using surface mount technology (SMD), making installation convenient and suitable for automated production. Its gold-plated contacts can effectively reduce contact resistance and improve antioxidant capacity, ensuring long-term stable connection performance. The mating stack height of AXK730147G is 1.5mm, with the board height also being 1.5mm, making it suitable for applications requiring high space and reliability such as smart devices, industrial control, and medical electronics. With its compact design, high-density connections, and excellent durability, the connector provides a reliable interconnection solution for modern electronic devices.
Panasonic connector - Provide Panasonic AXK730147G connector documentation and media:
| Resource type | Link |
| Spec sheet | Please contact the contact person at the bottom of the article page for more information. |
Panasonic connector - Providing genuine Panasonic AXK730147G connector and related product information.
We focus on the spot supply of (Panasonic) brand connectors, committed to providing customers with high-quality and reliable connection solutions. Our products include genuine products and high-performance alternatives, which have been strictly tested to ensure stability and efficiency. Welcome to contact us through the contact information below the document page.
