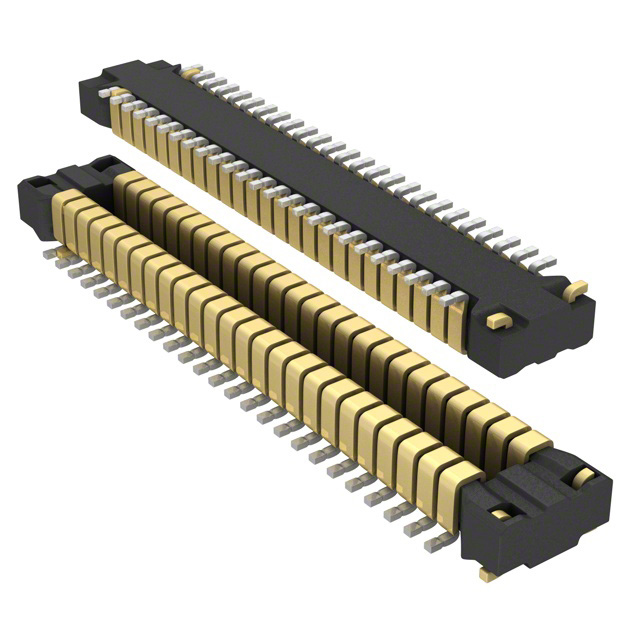

Panasonic connector - Provide a product overview of Panasonic AXT650124 connector
 | Manufacturer | Panasonic |
| Manufacturer Part Number | AXT650124 | |
| Product Description | CONN HDR 50POS SMD GOLD, 50-position connector socket, central contact with surface mount type gold plated |
Panasonic connector - Provide product attributes for Panasonic AXT650124 connector
| Type | Describe |
| Category | Connector, interconnect device |
| Rectangular connector | |
| Array, edge type, sandwich type (plate-to-plate) | |
| Manufacturer | Panasonic |
| Series | F4S |
| Connector type | Joint, central contact strip |
| Needle count | 50 |
| spacing | 0.016"（0.40mm） |
| Row number | 2 |
| Installation Type | Surface Mount Technology |
| Feature | Fixed weld tail |
| Touch surface treatment | Gold plated |
| Touch head surface treatment thickness | - |
| Combined stacking height | 1mm |
| Board height | 0.033"（0.84mm） |
| Basic product number | AXT650 |
Panasonic connector - Providing a brief introduction to the Panasonic AXT650124 connector product (series)
Panasonic AXT650124 is a high-density board-to-board connector, belonging to the F4S series, designed specifically for compact electronic devices. The connector features a 0.40mm pitch, providing 50 central contacts, a double-row design, ensuring stable and reliable signal transmission. The product supports surface mount technology (SMD), with a fixed tail design to enhance welding stability and simplify assembly processes. The contacts are gold-plated, effectively reducing contact resistance and improving anti-oxidation performance, ensuring long-term stable electrical connections. The mating stack height of AXT650124 is 1mm, with a board height of only 0.84mm, making it very suitable for applications with high space requirements such as smartphones, wearable devices, and industrial control equipment. With its high density, miniaturization, and high reliability, this connector provides an excellent connection solution for modern precision electronic devices.
Panasonic connector - Provide Panasonic AXT650124 connector documentation and media:
| Resource type | Link |
| Specification Sheet | Please contact the contact person at the bottom of the article page for more information. |
Panasonic connector - Provides detailed information on genuine and replacement Panasonic AXT650124 connectors.
We focus on the spot supply of (Panasonic) brand connectors, committed to providing customers with high-quality and reliable connection solutions. Our products include original genuine and high-performance alternatives, which have been strictly tested to ensure stability and efficiency. Welcome to contact us through the contact information below the document page!
