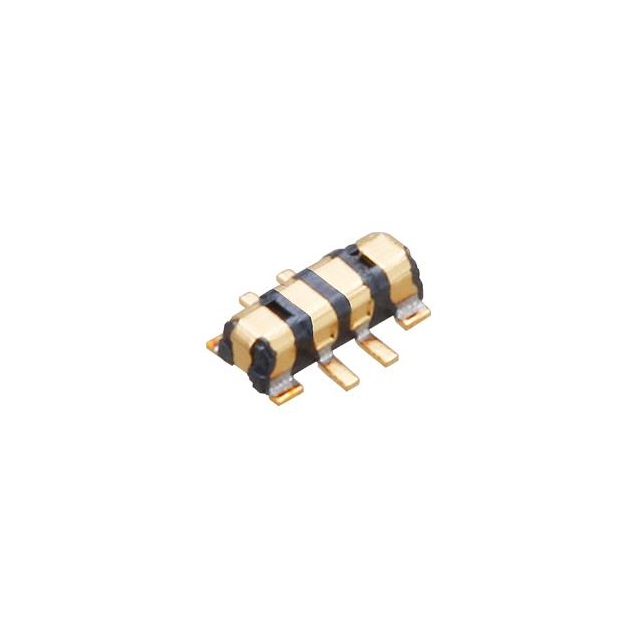

Panasonic connector - Provide product overview of Panasonic AXF6K0412A connector
 | Manufacturer | Panasonic |
| Manufacturer Part Number | AXF6K0412A | |
| Product Description | CONN HEADER 4POS .35MM SMD GOLD, 4 position connector plug, central contact with surface mount type gold plated |
Panasonic connector - Provide product attributes of Panasonic AXF6K0412A connector
| Type | describe |
| Category | Connector, interconnection device |
| Rectangular connector | |
| Array, edge type, sandwich type (board-to-board) | |
| Manufacturer | Panasonic |
| series | R35K |
| Connector type | Connector, central contact strip |
| Needle count | 4 |
| Spacing | 0.014"（0.35mm） |
| Row number | 2 |
| Installation type | Surface mount type |
| Characteristics | Fixed weld tail |
| Touch surface treatment | Gilded |
| Contact surface treatment thickness | - |
| Combined stacking height | 0.6mm |
| board height | 0.018"（0.46mm） |
| Basic Product Number | AXF6K0 |
Panasonic connector - Provides an introduction to the Panasonic AXF6K0412A connector product (series)
Panasonic AXF6K0412A is a superminiature board-to-board connector belonging to the R35K series, designed for compact electronic devices. The connector uses a 0.35mm pitch, has 4 central contacts, and a double-row layout to ensure stable signal transmission. The product supports surface mount (SMD) technology, with a fixed tail design that enhances welding stability and helps improve assembly efficiency. The contacts are gold-plated to effectively reduce contact resistance, improve corrosion resistance, and ensure long-term reliable connection performance. The mating stack height of AXF6K0412A is only 0.6mm, and the board height is 0.46mm, making it very suitable for applications with strict space requirements such as smartphones, wearable devices, medical electronics, etc. With its compact structure and high reliability, this connector provides a high-quality connection solution for modern miniature electronic devices.
Panasonic connector - Provide Panasonic AXF6K0412A connector documentation and media:
| Resource Type | Link |
| Specification Sheet | Please contact the person listed at the bottom of the article for more information. |
Panasonic connector - Provide detailed information about the genuine Panasonic AXF6K0412A connector and its alternatives.
We focus on the spot supply of (Panasonic) brand connectors, committed to providing customers with high-quality and reliable connection solutions. Our products include original genuine and high-performance alternatives, which have been strictly tested to ensure stability and efficiency. Welcome to contact us through the contact information below the document page!
