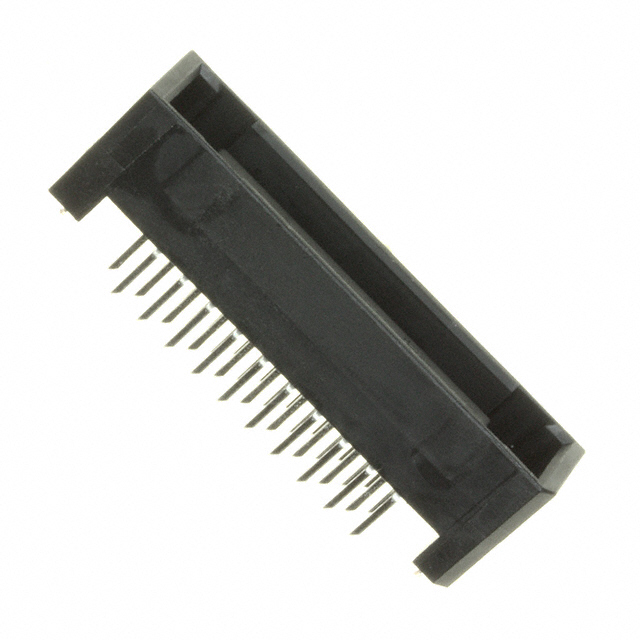

JAE TX25-40P-8ST-H1E connector product overview:
 | Manufacturer | JAE |
| Manufacturer Part Number | TX25-40P-8ST-H1E | |
| Product Description | TX25-40P-8ST-H1E, 40 position connector plug, central contact with through hole gold plated |
JAE TX25-40P-8ST-H1E connector product attributes:
| Type | Description |
| Category | Connector, interconnect device |
| Rectangular connector | |
| Array, edge type, sandwich type (board-to-board) | |
| Manufacturer | JAE Electronics |
| Series | TX25 |
| Connector type | Plug, central contact with |
| Needle count | 40 |
| Spacing | 0.050"（1.27mm） |
| Arrangement of rows | 2 |
| Installation type | Through-hole |
| Characteristic | Board lock |
| Contact surface treatment | Gold-plated |
| Touch surface treatment thickness | 4.00µin（0.100µm） |
| Combined stacking height | 14mm，18mm，20mm |
| Board height | 0.441"（11.20mm） |
| Basic Product Number | TX25-40P |
JAE TX25-40P-8ST-H1E connector product (series) introduction:
JAE Electronics' TX25 series rectangular connector is a high-performance board-to-board connector suitable for applications requiring reliable electrical connections. This series adopts a plug design with central contact with a design, featuring 40 pin positions with a spacing of 1.27mm, a double-row structure, ensuring stable signal transmission. The TX25-40P model uses through-hole mounting and is equipped with a board lock function, enhancing the stability and durability of the connection. Its contact surface is gold-plated with a coating thickness of 4.00µin (0.100µm), effectively enhancing antioxidant performance and ensuring long-term stable electrical performance. The series connectors support mating stack heights of 14mm, 18mm, and 20mm, with a board height of 11.20mm, suitable for various compact electronic devices. The TX25 series, with its high quality and reliability, is widely used in industrial control, communication equipment, and automation systems, making it an ideal choice for high-density circuit board connections.
JAE TX25-40P-8ST-H1E Connector Documentation and Media:
| Resource type | Link |
| Specification Sheet | Board-To-Board Connectors |
JAE TX25-40P-8ST-H1E connector genuine | replacement product related information:
We focus on the现货 supply of (JAE) brand connectors and are committed to providing customers with high-quality and reliable connection solutions. Our products include original genuine and high-performance alternatives, which have been strictly tested to ensure stability and efficiency. Welcome to contact us through the contact information below the document page!
