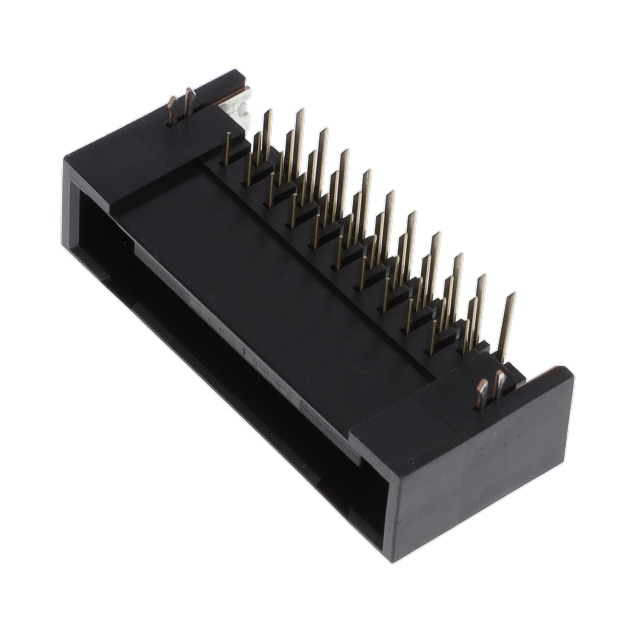

JAE TX25-40P-LT-H1E connector product overview:
 | Manufacturer | JAE |
| Manufacturer's part number | TX25-40P-LT-H1E | |
| Product Description | CONN PLUG 40POS R/A GOLD,40 positions connector plug, central contact with through hole, right angle gold plated |
JAE TX25-40P-LT-H1E connector product attributes:
| Type | Describe |
| Category | Connector, interconnect device |
| Rectangular connector | |
| Array, edge type, sandwich type (board-to-board) | |
| Manufacturer | JAE Electronics |
| Series | TX25 |
| Connector type | Plug, central contact with |
| Needle count | 40 |
| Spacing | 0.050"（1.27mm） |
| Row number | 2 |
| Installation Type | Through-hole, right angle |
| Characteristics | Board lock |
| Contact surface treatment | Gold plated |
| Surface treatment thickness of contactor | 4.00µin（0.100µm） |
| Combined stacking height | - |
| Board height | 0.354"（9.00mm） |
| Basic Product Number | TX25-40P |
Introduction to JAE TX25-40P-LT-H1E connector product (series):
JAE Electronics' TX25 series rectangular connector is a high-performance board-to-board connector suitable for high-density PCB design. This series features a plug design with central contact with design, having 40 pin positions, a pitch of 1.27mm, and a double-row structure to ensure stable signal transmission. The TX25-40P model adopts through-hole, right-angle installation, which is convenient for optimizing PCB layout and is equipped with a board lock function to improve the firmness and durability of the connection. Its contact surface is gold-plated with a plating thickness of 4.00µin (0.100µm), effectively enhancing the antioxidant performance and ensuring long-term stable electrical performance. The connector's board height is 9.00mm, suitable for compact electronic devices and widely used in industrial control, communication equipment, and automation systems. The TX25 series, with its high quality and reliability, provides high-quality connection solutions for various complex electronic applications.
JAE TX25-40P-LT-H1E connector document and media:
| Resource Type | Link |
| Specification Sheet | Please contact the contact person at the bottom of the article page for more information. |
JAE TX25-40P-LT-H1E connector genuine | replacement product related instructions:
We focus on the JAE brand connector's stock supply, committed to providing customers with high-quality and reliable connection solutions. Our products include original genuine and high-performance alternatives, rigorously tested to ensure stability and efficiency. Welcome to contact us through the contact information below the document page!
