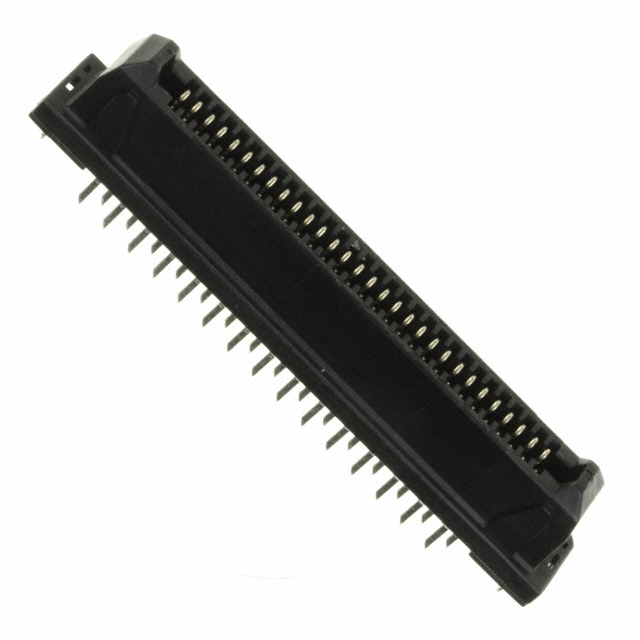

JAE TX24-60R-6ST-H1E connector product overview:
 | Manufacturer | JAE |
| Manufacturer Part Number | TX24-60R-6ST-H1E | |
| Product Description | CONN RCPT 60POS VERT GOLD,60 Position Connector Receptacle, Housing Contact Through Hole Gold Plated |
JAE TX24-60R-6ST-H1E connector product attributes:
| Type | Description |
| Category | Connector, interconnect device |
| Rectangular connector | |
| Array, edge type, sandwich type (board-to-board) | |
| Manufacturer | JAE Electronics |
| Series | TX24 |
| Connector type | Socket, outer shell contact |
| Acupuncture points | 60 |
| Spacing | 0.050"（1.27mm） |
| Row number | 2 |
| Installation type | Through-hole |
| Characteristics | Board lock |
| Contact surface treatment | Gold-plated |
| Touch head surface treatment thickness | 4.00µin（0.100µm） |
| Combined stacking height | 12mm，14mm，18mm |
| board height | 0.406"（10.30mm） |
| Basic product number | TX24-60R |
Introduction to JAE TX24-60R-6ST-H1E connector product (series):
JAE Electronics' TX24 series rectangular connector is a high-density board-to-board connector suitable for electronic devices requiring reliable signal transmission. The series features sockets with an outer shell contact design, having 60 pin positions, a pitch of 1.27mm, and a double-row structure, ensuring stable electrical connections. The TX24-60R model is designed for through-hole mounting and is equipped with a board locking function, enhancing the stability of the connection and preventing accidental disconnection. The contacts are gold-plated with a plating thickness of 4.00µin (0.100µm), improving anti-oxidation performance and ensuring long-term stable conductivity. The series supports mating stack heights of 12mm, 14mm, and 18mm, with a board height of 10.30mm, making it suitable for applications in industrial control, communication equipment, and automation systems. The TX24 series provides high-quality and reliable connection solutions for complex electronic devices.
