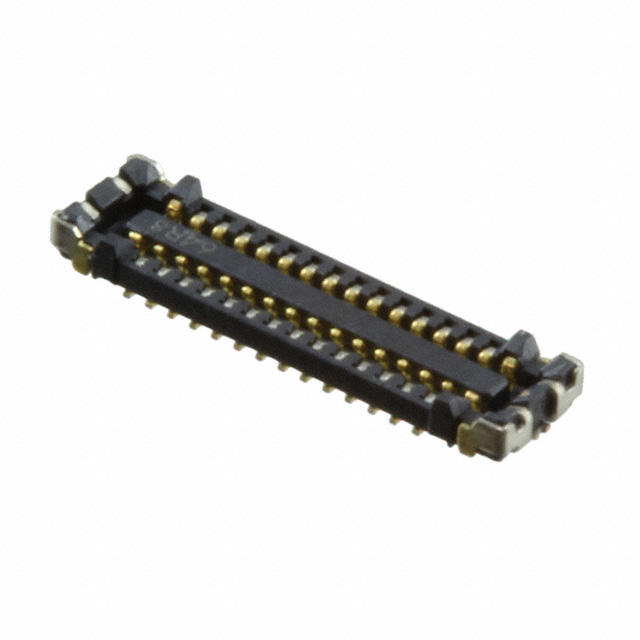

JAE WP25D-S028VA1-R8000 connector product overview:
 | Manufacturer | JAE |
| Manufacturer part number | WP25D-S028VA1-R8000 | |
| Product Description | CONN RCPT 28POS SMD GOLD,28 position connector receptacle, central contact, surface mount, gold plated |
JAE WP25D-S028VA1-R8000 connector product attributes:
| Type | Description |
| Category | Connector, interconnect device |
| Rectangular connector | |
| Array, edge type, sandwich type (board-to-board) | |
| Manufacturer | JAE Electronics |
| Series | WP25D |
| Part status | Not applicable to new design |
| Connector type | Socket, centrally with contact point |
| Needle count | 28 |
| Spacing | 0.014"（0.35mm） |
| Row number | 2 |
| Installation type | Surface Mount Technology |
| Characteristics | Fixed Weld Tail |
| Contact surface treatment | Gold plated |
| Contact surface treatment thickness | 4.00µin（0.100µm） |
| Combined stacking height | 0.7mm |
| Board height | 0.028"（0.71mm） |
| Basic product number | WP25D-S0 |
JAE WP25D-S028VA1-R8000 connector product (series) introduction:
JAE Electronics' WP25D series rectangular connector is a super miniature, high-density board-to-board connector suitable for compact electronic devices. This series adopts a plug design with central contacts, featuring 28 pins with a spacing of only 0.35mm, a double-row structure to ensure efficient and stable signal transmission while saving PCB space. The WP25D-S0 model uses a surface mount design and is equipped with fixed tail, improving welding stability and preventing the connector from moving during assembly. Its contact surface is gold plated with a coating thickness of 4.00µin (0.100µm), effectively enhancing anti-oxidation performance and ensuring long-term reliable electrical connections. The mating stack height of this series is only 0.7mm, and the board height is 0.71mm, making it very suitable for ultra-thin electronic products such as smartphones, wearable devices, and precision instruments. As the product status is "not suitable for new designs," it is recommended that customers choose alternative models for new projects to ensure long-term supply support.
JAE WP25D-S028VA1-R8000 connector document and media:
| Resource type | Link |
| Specification Sheet | WP25D Series |
