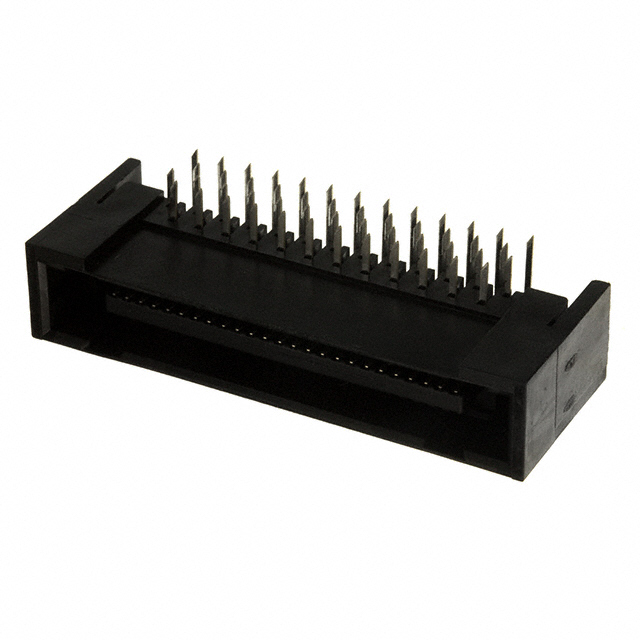

JAE TX25-50P-LT-N1E connector product overview:
 | Manufacturer | JAE |
| Manufacturer Part Number | TX25-50P-LT-N1E | |
| Product Description | CONN PLUG 50POS R/A GOLD, 50 positions connector plug, central contact with through hole, right angle gold plated |
JAE TX25-50P-LT-N1E connector product attributes:
| Type | Description |
| Category | Connector, interconnect device |
| Rectangular connector | |
| Array, edge type, sandwich type (plate to plate) | |
| Manufacturer | JAE Electronics |
| Series | TX25 |
| Connector type | Plug, central contact with |
| Needle positions | 50 |
| Spacing | 0.050"（1.27mm） |
| Row number | 2 |
| Installation Type | Through-hole, right angle |
| Characteristics | - |
| Contact surface treatment | Gilded |
| Touch head surface treatment thickness | 4.00µin（0.100µm） |
| Joint stacking height | - |
| Board height | 0.354"（9.00mm） |
| Basic Product Number | TX25-50P |
Introduction to JAE TX25-50P-LT-N1E connector product (series):
JAE Electronics TX25 series rectangular connectors are high-performance board-to-board connectors suitable for various electronic devices. This series features a plug design with a central contact strip, providing stable and reliable signal transmission. The TX25-50P connector has 50 pin positions and uses a double-row layout with a 1.27mm (0.050") spacing, ensuring high-density connections while optimizing space utilization. Its through-hole, right-angle installation method facilitates PCB assembly and is suitable for compact electronic designs. The connector's contacts are gold-plated with a plating thickness of 4.00µin (0.100µm), enhancing corrosion resistance and conductivity, ensuring long-term stable connections. Its board height is 9.00mm (0.354"), suitable for various industrial, communication, and consumer electronics applications. The TX25 series, with its high reliability and compact design, is an ideal choice for high-density interconnect solutions.
