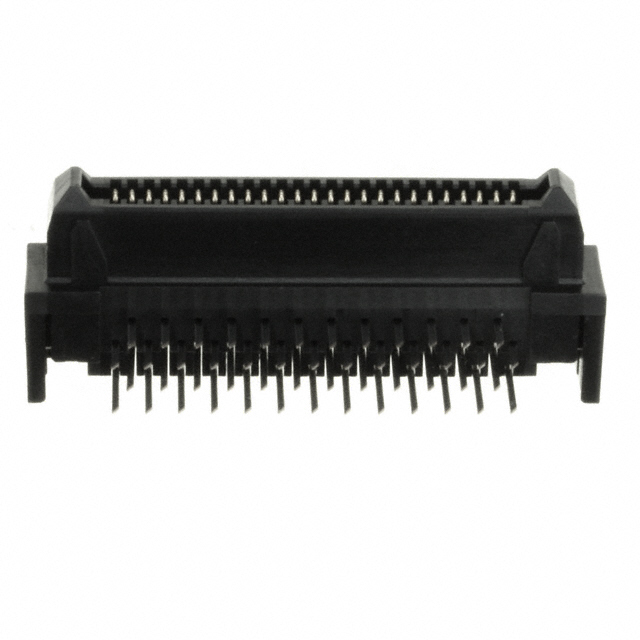

JAE TX24-50R-LT-N1E connector product overview:
 | Manufacturer | JAE |
| Manufacturer Part Number | TX24-50R-LT-N1E | |
| Product Description | CONN RCPT 50POS R/A GOLD,50 Position Connector Socket, Overmolded Contacts Through Hole, Right Angle Gold Plated |
JAE TX24-50R-LT-N1E connector product attributes:
| Type | Describe |
| Category | Connector, interconnect device |
| Rectangular connector | |
| Array, edge type, sandwich type (plate to plate) | |
| Manufacturer | JAE Electronics |
| Series | TX24 |
| Connector type | Socket, housing contact |
| Needle count | 50 |
| Spacing | 0.050"（1.27mm） |
| row number | 2 |
| Installation Type | Through-hole, right angle |
| Feature | - |
| Contact surface treatment | Gold plating |
| Touch probe surface treatment thickness | 4.00µin（0.100µm） |
| Joint stacking height | - |
| Board height | 0.354"（9.00mm） |
| Basic product number | TX24-50R |
JAE TX24-50R-LT-N1E connector product (series) introduction:
JAE Electronics' TX24 series rectangular connector is a high-density board-to-board connector suitable for the precise interconnection needs of various electronic devices. This series features a socket design with housing contacts to ensure stable and reliable electrical connections. The TX24-50R connector has 50 pin positions and employs a double-row layout with a 1.27mm (0.050") spacing, supporting high-density signal transmission while optimizing PCB board space utilization. Its through-hole, right-angle installation method makes it easy to integrate into various circuit designs. The connector's contacts are gold-plated with a plating thickness of 4.00µin (0.100µm), effectively enhancing corrosion resistance and conductivity to ensure long-term reliable connections. With a board height of 9.00mm (0.354"), it is suitable for compact electronic devices and high-performance applications. The TX24 series, with its high reliability and exquisite design, is an ideal choice for high-density interconnection applications in industrial, communication, and consumer electronic equipment.
