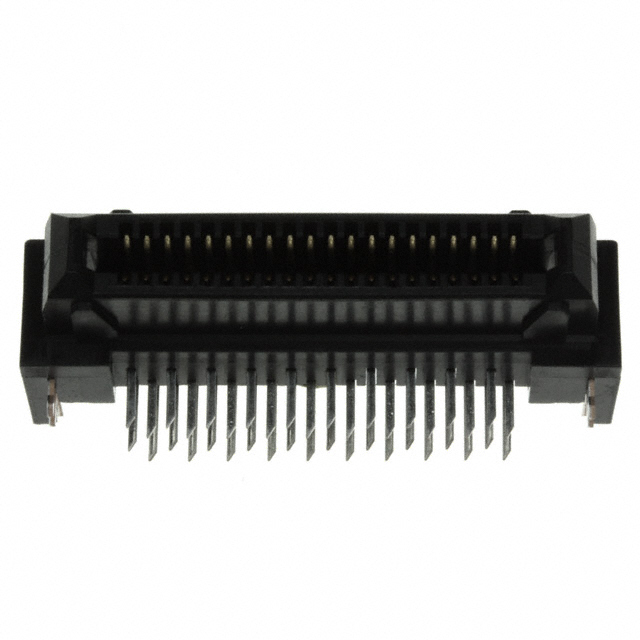

JAE TX24-40R-LT-H1E connector product overview:
 | Manufacturer | JAE |
| Manufacturer part number | TX24-40R-LT-H1E | |
| Product Description | CONN RCPT 40POS R/A GOLD,40 Position Connector Receptacle, Housing Contact Through Hole, Right Angle Gold Plated |
JAE TX24-40R-LT-H1E connector product attributes:
| Type | Describe |
| Category | Connector, interconnection device |
| Rectangular connector | |
| Array, edge type, sandwich type (board-to-board) | |
| Manufacturer | JAE Electronics |
| Series | TX24 |
| Connector type | Socket, outer contact point |
| Needle count | 40 |
| Spacing | 0.050"（1.27mm） |
| Row number | 2 |
| Installation type | Through-hole, right angle |
| Characteristics | Board lock |
| Touch head surface treatment | Gold plated |
| Touch point surface treatment thickness | 4.00µin（0.100µm） |
| Combined stacking height | - |
| On board height | 0.354"（9.00mm） |
| Basic Product Number | TX24-40R |
Introduction to JAE TX24-40R-LT-H1E connector product (series):
The JAE Electronics TX24 series rectangular connector is a high-density board-to-board connector suitable for reliable interconnection of precision electronic devices. The TX24-40R features a socket design with shell contacts, offering excellent electrical performance and stable signal transmission. This connector has 40 pins arranged in a double-row layout with a 1.27mm (0.050") spacing, supporting high-density signal connections while saving PCB board space. Its through-hole, right-angle installation method ensures easy assembly and reliable fixation, suitable for various electronic application scenarios. The TX24-40R has a board lock function to enhance the stability of the connector with the PCB board, preventing accidental loosening and improving the overall system reliability. Its contact surfaces are gold plated with a thickness of 4.00µin (0.100µm), effectively enhancing corrosion resistance and conductivity to ensure long-term stable connections. With its high reliability and compact design, the TX24-40R is an ideal choice for high-density interconnection in industrial equipment, communication systems, and consumer electronics.
