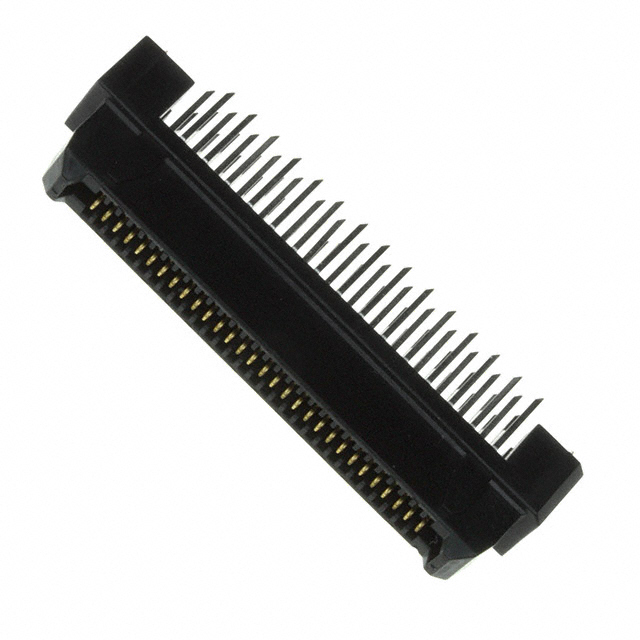

JAE TX24-60R-10ST-H1E connector product overview:
 | Manufacturer | JAE |
| Manufacturer Part Number | TX24-60R-10ST-H1E | |
| Product Description | CONN RCPT 60POS VERT GOLD,60 Position Connector Receptacle, Shell Contact Through Hole Gold Plated |
JAE TX24-60R-10ST-H1E connector product attributes:
| Type | describe |
| Category | Connector, interconnect device |
| Rectangular connector | |
| Array, edge type, sandwich type (plate-to-plate) | |
| Manufacturer | JAE Electronics |
| Series | TX24 |
| Connector type | Socket, external contact point |
| Needle count | 60 |
| Spacing | 0.050"（1.27mm） |
| Numbered rows | 2 |
| Installation Type | Through-hole |
| Characteristics | Board lock |
| Contact surface treatment | Gold-plated |
| Touch surface treatment thickness | 4.00µin（0.100µm） |
| Joint stacking height | 16mm，18mm，22mm |
| Board height | 0.563"（14.30mm） |
| Basic product number | TX24-60R |
Introduction to JAE TX24-60R-10ST-H1E connector product (series):
JAE Electronics TX24 series rectangular connector is a high-performance board-to-board connector, specifically designed to meet the stringent requirements of high-density signal transmission and electronic devices. The TX24-60R connector features a socket, housing contact structure, providing a stable electrical connection, and is widely used in communication, industrial, and consumer electronics products. The connector has 60 pins, adopts a double-row layout with a 1.27mm (0.050") spacing, supporting high-density signal connections, and optimizes PCB space utilization. Its through-hole mounting method makes it easy to integrate and suitable for various electronic systems. The TX24-60R is equipped with a board lock function, effectively enhancing the fixing strength between the connector and PCB board, preventing connector loosening, and ensuring long-term reliability. The contact surface is gold-plated, with a coating thickness of 4.00µin (0.100µm), offering excellent antioxidant and conductive properties. The mating stack height can be selected as 16mm, 18mm, or 22mm, meeting different design requirements. With its high reliability, compact design, and flexibility, the TX24-60R is an ideal solution for high-density interconnect applications.
