Categorization：Brand Connector

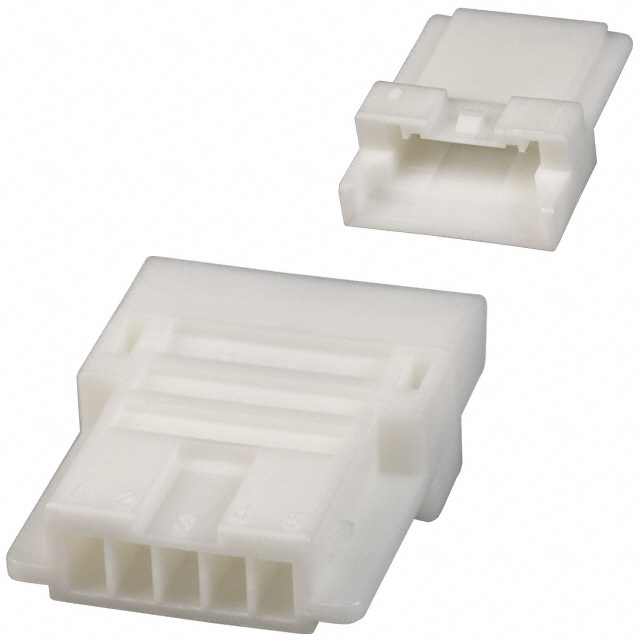

JST connector - Provide product overview of JST PALR-05VF connector
 | Manufacturer | JST |
| Manufacturer Part Number | PALR-05VF | |
| Product Description | CONN PLUG HSG 5POS 2.00MM, 5 Rectangular Connector - Shell Plug Natural 0.079" (2.00mm) |
JST connector - Provide product attributes of JST PALR-05VF connector:
| Type | Description |
| Category | Connector, interconnect device |
| Rectangular connector | |
| Rectangular connector housing | |
| Manufacturer | JST |
| Series | PA |
| Connector type | Plug |
| Contact type | Public shape pin |
| Needle count | 5 |
| Spacing | 0.079"（2.00mm） |
| Row number | 1 |
| arrangement spacing | - |
| Installation Type | Free hanging |
| Touch end connection | Soldering |
| Fastening type | Lock slide track |
| Color | Natural |
| Characteristics | - |
| Insulating material | Polyamide (PA66), nylon 6/6 |
| Operating temperature | -25°C ~ 85°C |
| Note | Touchless |
| Basic Product Number | PALR |
JST Connector - Providing JST PALR-05VF connector product series introduction:
JST PALR-05VF is a high-performance rectangular connector housing, belonging to the JST PA series, specifically designed for compact electronic devices. The connector type is a plug, using 5-position male pins with a pitch of 2.00mm, suitable for applications requiring stable and reliable connections, such as consumer electronics, industrial automation, and communication equipment fields. Its free-hanging installation method provides greater wiring flexibility, meeting various circuit connection requirements. The product uses high-quality polyamide (PA66, nylon 6/6) as the insulating material, with good heat resistance and mechanical strength, ensuring stable operation in an environment of -25°C to 85°C. Its termination method is crimped, and it is equipped with a locking pin slide design to improve the stability of the connection, prevent accidental disconnection, and ensure long-term reliability. JST PALR-05VF is suitable for various small electronic devices, and it should be noted that this product does not include contacts and requires the purchase of corresponding terminals to complete the complete connection solution.
JST connector - Provide JST PALR-05VF connector documentation and media:
| Resource type | Link |
| Specification Sheet | PA-F Series Datasheet |
JST connector - Offering genuine JST PALR-05VF connector and related replacement information
We focus on the现货 supply of (JST) brand connectors, committed to providing customers with high-quality and reliable connection solutions. Our products include genuine and high-performance alternatives, rigorously tested to ensure stability and efficiency. Welcome to contact us through the contact information below the document page!
