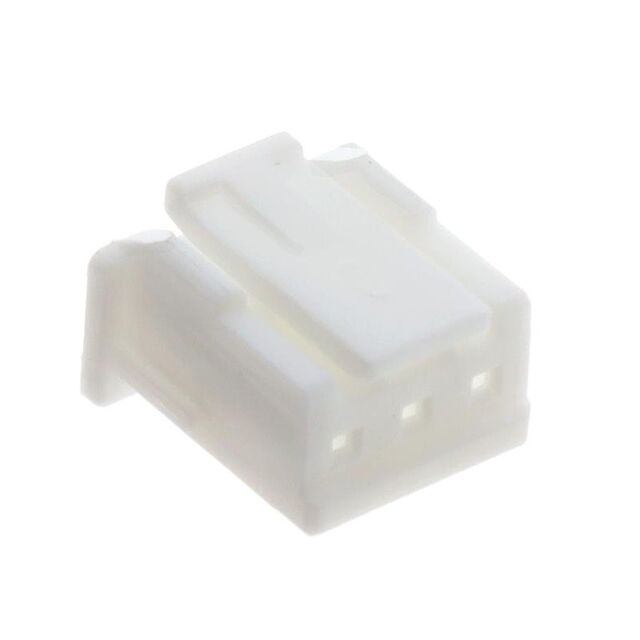

JST connector - Providing a product overview of the JST XAP-03V-1 connector
 | Manufacturer | JST |
| Manufacturer Part Number | XAP-03V-1 | |
| Product Description | CONN RCPT HSG 3POS 2.50MM, 3 rectangular connectors - housing plug natural 0.098" (2.50mm) |
JST connector - Provides product attributes of JST XAP-03V-1 connector
| Type | Describe |
| Category | Connector, interconnect device |
| Rectangular connector | |
| Rectangular connector housing | |
| Manufacturer | JST Sales America Inc. |
| Series | XA |
| Connector type | Socket |
| Contact type | Mother mold socket |
| Needle count | 3 |
| Spacing | 0.098"（2.50mm） |
| row number | 1 |
| arranged distance | - |
| Installation Type | Free suspension |
| Touch terminal | Compression connection |
| Fastener type | Unlock |
| Color | Natural |
| Characteristics | - |
| Insulating material | Polyamide (PA66), Nylon 6/6 |
| Operating temperature | -25°C ~ 85°C |
| Please provide the text you would like to have translated. | Contactless |
| Basic Product Code | XAP |
JST connector - Provide an introduction to the JST XAP-03V-1 connector product (series)
JST XAP-03V-1 is a high-quality rectangular connector housing, belonging to the JST XA series, specifically designed for stable and reliable electrical connections. The connector type is a socket, using a 3-pole female socket with a spacing of 2.50mm, suitable for various electronic devices and industrial applications. Its free-hanging installation method allows for flexible wiring capabilities, meeting connection requirements in different environments. The product uses durable polyamide (PA66, nylon 6/6) as the insulating material, with excellent heat resistance and mechanical strength, ensuring stable operation within a working temperature range of -25°C to 85°C. The termination method is crimping, and it is equipped with a pin lock structure to ensure a secure connection, prevent accidental disconnection, and improve safety. The JST XAP-03V-1 is widely used in consumer electronics, industrial automation, power systems, and other fields. It should be noted that this product does not include contacts and needs to be paired with the corresponding terminals for a complete connection solution.
JST connector - Provide JST XAP-03V-1 connector documentation and media:
| Resource type | Link |
| Specification Sheet | XA-H Series Datasheet |
JST connector - Providing genuine JST XAP-03V-1 connector and its alternatives related specifications:
We focus on the stock supply of (JST) brand connectors, committed to providing customers with high-quality and reliable connection solutions. Our products include original genuine and high-performance alternatives, strictly tested to ensure stability and efficiency. Welcome to contact us through the contact information below on the document page!
