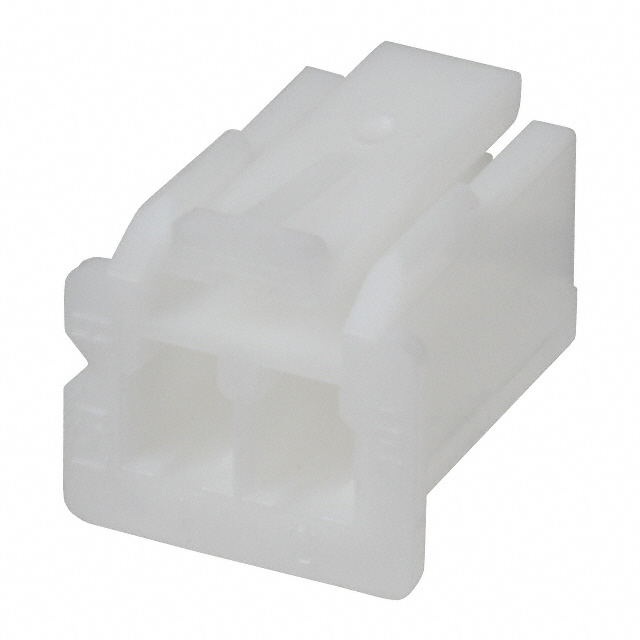

JST connector - Provide product overview of JST XAP-02V-1 connector
 | Manufacturer | JST |
| Manufacturer Part Number | XAP-02V-1 | |
| Product Description | CONN RCPT HSG 2POS 2.50MM, 2 rectangular connector - housing socket natural 0.098" (2.50mm) |
JST connector - Providing product properties of JST XAP-02V-1 connector
| Type | Description |
| Category | Connector, interconnect device |
| Rectangular connector | |
| Rectangular connector housing | |
| Manufacturer | JST |
| Series | XA |
| Connector type | Socket |
| Contact type | Maternal socket |
| Needle count | 2 |
| Spacing | 0.098"（2.50mm） |
| Row number | 1 |
| Spacing | - |
| Installation type | Free hanging |
| Touch end connection | Soldering |
| Fastening type | Unlock |
| Color | Natural |
| Characteristics | - |
| Insulating material | Polyamide (PA66), nylon 6/6 |
| Operating temperature | -25°C ~ 85°C |
| Note | Contactless |
| Basic Product Number | XAP |
JST connector - Introduction to JST XAP-02V-1 connector product (series)
JST XAP-02V-1 is a high-performance rectangular connector housing, belonging to the JST XA series, and is specifically designed for reliable electrical connections. The connector type is a socket, featuring a 2-position female socket, with a pitch of 2.50mm, and is suitable for various small electronic devices and industrial applications. Its free-hanging installation method provides flexible wiring solutions, adapting to different application scenarios. The product uses high-quality polyamide (PA66, nylon 6/6) as the insulating material, with good thermal resistance and mechanical strength, ensuring stable operation within a working temperature range of -25°C to 85°C. The termination method is crimping, and it is equipped with a pin lock structure, which improves the stability and durability of the connection and prevents accidental detachment. JST XAP-02V-1 is widely used in consumer electronics, industrial automation, and power systems, among other fields. It should be noted that this product does not include terminals and additional terminals need to be purchased separately to complete assembly.
JST connector - Providing JST XAP-02V-1 connector documentation and media:
| Resource Type | Link |
| Specification Sheet | XA-H Series Datasheet |
JST connector - Providing genuine JST XAP-02V-1 connector and its substitute related information:
We focus on the stock supply of (JST) brand connectors, committed to providing customers with high-quality and reliable connection solutions. Our products include original genuine and high-performance alternatives, rigorously tested to ensure stability and efficiency. Welcome to contact us through the contact information below on the document page!
