JAE WP7-P028VA1-R8000 Connector Product Overview:
 | makers | JAE |
| Manufacturer's Code | WP7-P028VA1-R8000 | |

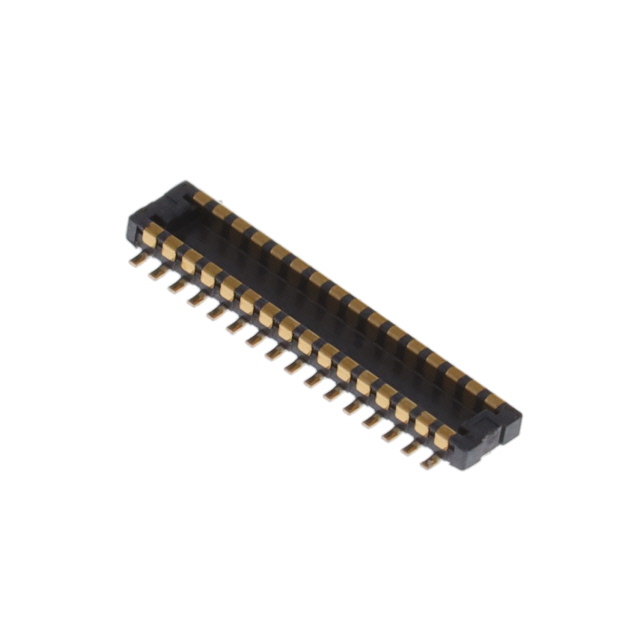

| Product Description | CONN PLUG 28POS SMD GOLD,28 pos Connector Plug, Outer Shroud Contacts Surface Mount Gold Plated |
JAE WP7-P028VA1-R8000 Connector Product Attributes:
| typology | descriptive |
| form | Connectors, Interconnects |
| Rectangular connectors | |
| Array, Edge-Type, Mezzanine (Board-to-Board) | |
| makers | JAE Electronics |
| range | WP7 |
| Connector Type | Plug, Outer Shroud Contacts |
| pin position | 28 |
| spacing | 0.016"（0.40mm） |
| number of sets (of clothes, etc.) | 2 |
| Installation type | Surface Mount |
| characterization | fixed brackets |
| Contact surface treatment | gilt |
| Contact surface treatment thickness | 4.00µin（0.100µm） |
| Splice Stack Height | 0.7mm |
| board height | 0.020"（0.50mm） |
| Basic Product Number | WP7-P028 |
JAE WP7-P028VA1-R8000 Connector Product (Series) Description:
JAE Electronics introduces the WP7 Series Rectangular Connector, a high-performance board-to-board connectivity solution. The connector is a surface mount type with 28-pin plug housing contacts, a pin pitch of 0.016" (0.40mm), and a row count of 2, making it suitable for a wide range of precision electronic devices. Its solder tail fixing design ensures a stable connection and reliable performance.The contact surface of WP7 series connectors is gold plated with a plating thickness of 4.00µin (0.100µm), which provides excellent electrical conductivity and oxidation resistance to ensure efficient operation for long periods of time. The splice stack height is 0.7mm and the on-board height is 0.020" (0.50mm), making it a good fit in space-constrained applications. The basic product number, WP7-P028, is suitable for high-density, electronic product applications that require high stability, such as communications, industrial control, consumer electronics and other fields, and can effectively improve the reliability and performance of the overall system.
