Categorization：Brand Connector

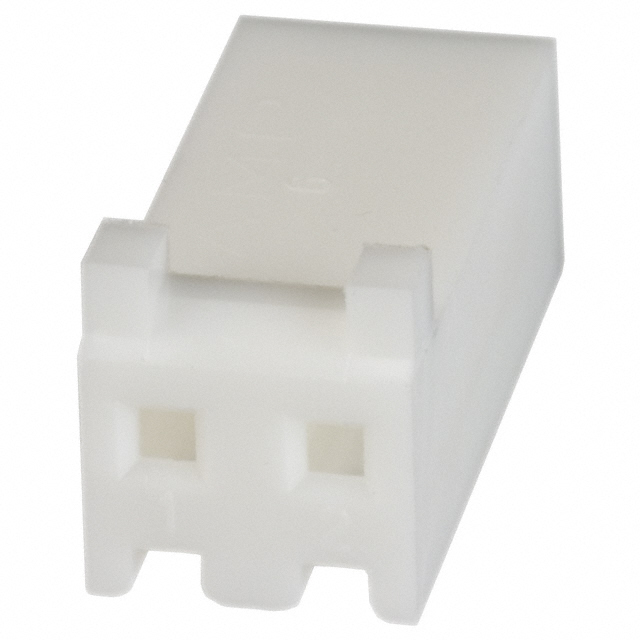

TE 770849-2 Connector Product Overview:
 | makers | TE |
| Manufacturer's Code | 770849-2 | |
| Product Description | CONN RCPT HSG 2POS 3.96MM, 2 Rectangular Connector - Shell Receptacle Natural 0.156" (3.96mm) |
TE 770849-2 Connector Product Attributes:
| typology | descriptive |
| form | Connectors, Interconnects |
| Rectangular connectors | |
| Rectangular Connector Shells | |
| makers | TE Connectivity AMP Connectors |
| range | SL-156 |
| wrap | draft (of beer, as opposed bottled) |
| Connector Type | sockets |
| Contact type | Female Sockets |
| pin position | 2 |
| spacing | 0.156"（3.96mm） |
| number of sets (of clothes, etc.) | 1 |
| Installation type | free hanging |
| contact termination | cladding |
| Fastening type | Locking Pin Chute |
| color | natural |
| characterization | Electrode marking |
| insulating material | Polyamide (PA), Nylon |
| operating temperature | -55°C ~ 105°C |
| note | without contacts |
| Basic Product Number | 770849 |
TE 770849-2 Connector Product (Series) Profile:
TE Connectivity AMP Connectors' SL-156 series rectangular connector housing is a high-performance and reliable electrical connection solution for a wide range of industrial and commercial applications. The connector is a receptacle design with a female socket that supports a 2-pin layout with a 0.156-inch (3.96mm) pin pitch and a compact single row for efficient connections. The connector utilizes a free-hanging mount with crimped contact termination for quick assembly. Fastening is by means of a locking pin slide, which provides a solid and reliable mechanical connection, as well as an electrode marking feature for easy identification and operation. The housing is made of polyamide (PA), i.e. nylon, with excellent insulating properties and mechanical strength, capable of stable operation over a wide range of operating temperatures from -55°C to 105°C, and adapted to a wide range of harsh environments. The natural color housing is designed without contacts, allowing users to choose the appropriate contact configuration for their specific needs. Part number 770849 is ideal for efficient, reliable electrical connections.
TE 770849-2 Connector Documentation and Media:
| Resource type | link (on a website) |
| specification | 770849-2 |
TE 770849-2 Connector Connector Genuine|Replacement Description:
We specialize in stocking (TE) brand connectors and are committed to providing our customers with high quality, reliable connectivity solutions. Our products include genuine and high-performance alternatives that are rigorously tested to ensure stability and efficiency. Please feel free to contact us through the contact information below the documentation page!
