Categorization：Brand Connector

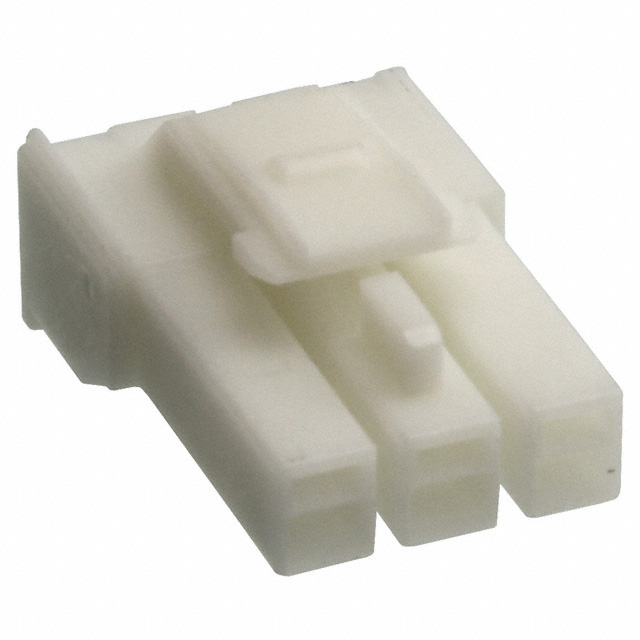

TE 176272-1 Connector Product Overview:
 | makers | TE |
| Manufacturer's Code | 176272-1 | |
| Product Description | CONN PLUG HSG 3POS 3.96MM, 3 Rectangular Connector - Shell Plug Natural 0.156" (3.96mm) |
TE 176272-1 Connector Product Attributes:
| typology | descriptive |
| form | Connectors, Interconnects |
| Rectangular Connectors | |
| Rectangular Connector Shells | |
| makers | TE Connectivity AMP Connectors |
| range | Universal Power |
| wrap | draft (of beer, as opposed bottled) |
| Connector Type | plug |
| Contact type | Female Sockets |
| pin position | 3 |
| spacing | 0.156"（3.96mm） |
| number of sets (of clothes, etc.) | 1 |
| Installation type | free hanging |
| contact termination | cladding |
| Fastening type | pin lock |
| color | natural |
| operating temperature | -30°C ~ 105°C |
| note | without contacts |
| Basic Product Number | 176272 |
TE 176272-1 Connector Product (Series) Profile:
TE Connectivity AMP Connectors' Universal Power Series rectangular connector housing is a high-performance and versatile electrical connection solution used in a wide range of industrial and commercial equipment. The product is a plug-type connector with a female socket, supporting 3-pin position, pin spacing of 0.156 inches (3.96mm), single-row design, compact, suitable for a variety of space-constrained application requirements. The connector features free-hanging mounting and crimp contact termination for quick installation and removal. The fastening type is pin-locking, which ensures a secure and reliable connection and prevents loosening. The connector is suitable for operating temperatures from -30°C to 105°C and is stable in a wide range of environments. The connector is natural in color and does not include contacts, allowing the user to select the appropriate contact configuration. Part number 176272 is a cost-effective and reliable electrical connection solution for a wide range of applications in electrical, automation, and automotive electronics, meeting a variety of connection needs.
TE 176272-1 Connector Documentation and Media:
| Resource type | link (on a website) |
| specification | 176272-1 |
TE 176272-1 Connector Connector Genuine|Replacement Description:
We specialize in stocking (TE) brand connectors and are committed to providing our customers with high quality, reliable connectivity solutions. Our products include genuine and high-performance alternatives that are rigorously tested to ensure stability and efficiency. Please feel free to contact us through the contact information below the documentation page!
