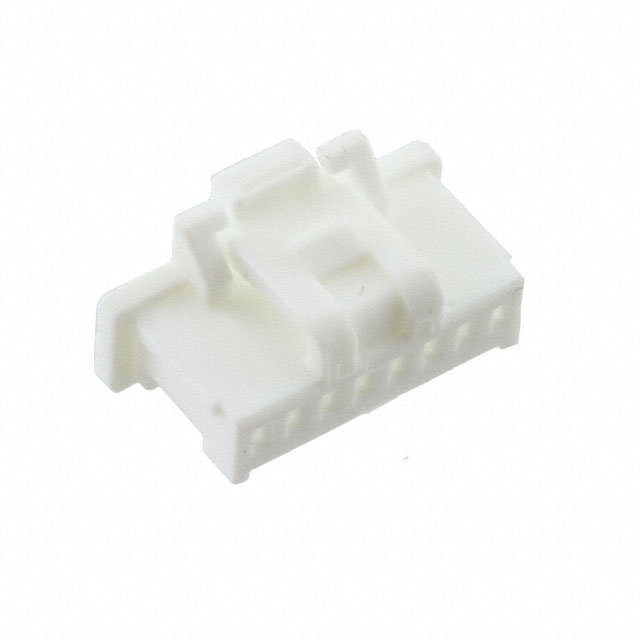

Molex 5013300800 Connector Product Overview:
 | makers | Molex |
| Manufacturer's Code | 5013300800 | |
| Product Description | CONN RCPT HSG 8POS 1.00MM,8 Rectangular Connector - Housing Receptacle White 0.039" (1.00mm) |
Molex 5013300800 Connector Product Attributes:
| typology | descriptive |
| form | Connectors, Interconnects |
| Rectangular Connectors | |
| Rectangular Connector Shells | |
| makers | Molex |
| range | Pico-Clasp 501330 |
| Connector Type | sockets |
| Contact type | Female Sockets |
| pin position | 8 |
| spacing | 0.039"（1.00mm） |
| number of sets (of clothes, etc.) | 1 |
| leading | - |
| Installation type | free hanging |
| contact termination | cladding |
| Fastening type | Locking Pin Chute |
| color | fig. reactionary |
| characterization | - |
| insulating material | Polyamide (PA), Nylon |
| operating temperature | -40°C ~ 105°C |
| note | without contacts |
| Basic Product Number | 501330 |
Molex 5013300800 Connector Product (Series) Profile:
The Molex Pico-Clasp 501330 series connector is a high-density, reliable receptacle-type connector used in a wide range of electronic devices. The connector has eight pin positions, pitch 0.039" (1.00mm), using a single-row design, suitable for compact space and the strict requirements of the connection of the application scenario.Pico-Clasp 501330 series connectors with female socket design, contact termination for crimp, to ensure a stable electrical connection. The fastening type is a locking pin slide, which provides greater mechanical stability and prevents the connector from coming loose due to vibration or external forces. The connector housing is made of polyamide (PA) and nylon materials with excellent heat and shock resistance for reliable operation over a wide operating temperature range from -40°C to 105°C. The connector is supplied without contacts. The connector does not contain contacts and is highly customizable by allowing the user to select the appropriate contact configuration as needed.The Molex Pico-Clasp 501330 series is widely used in communications, consumer electronics, automotive electronics, and other fields to meet the demand for high-density, high-reliability connections, and is ideal for use in all types of high-performance electronic equipment.
Molex 5013300800 Connector Documentation and Media:
| Resource type | link (on a website) |
| specification |
Molex 5013300800 Connector Genuine|Replacement Description:
We specialize in stocking (Molex) brand connectors and are committed to providing our customers with quality, reliable connectivity solutions. Our products include genuine and high-performance alternatives that are rigorously tested to ensure stability and efficiency. Please feel free to contact us through the contact information below the documentation page!
