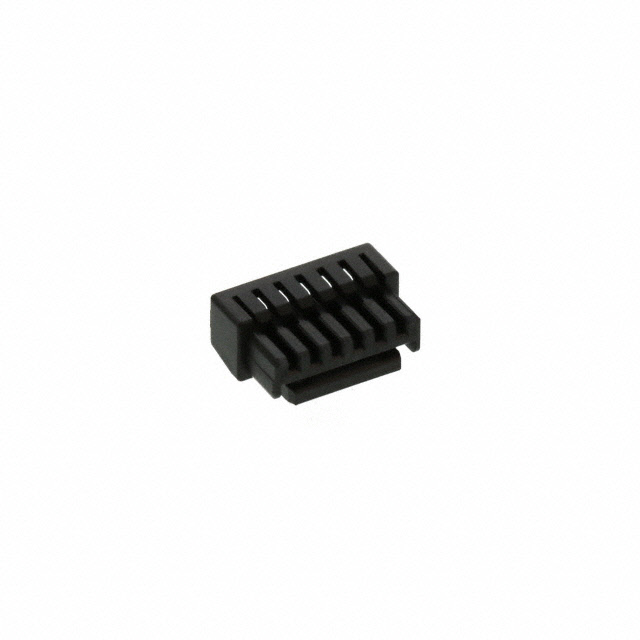

Molex 5055650601 Connector Product Overview:
 | makers | Molex |
| Manufacturer's Code | 5055650601 | |
| Product Description | CONN RCPT HSG 6POS 1.25MM,6 Rectangular Connector - Housing Receptacle Black 0.049" (1.25mm) |
Molex 5055650601 Connector Product Attributes:
| typology | descriptive |
| form | Connectors, Interconnects |
| Rectangular connectors | |
| Rectangular Connector Shells | |
| makers | Molex |
| range | Micro-Lock PLUS 505565 |
| Connector Type | sockets |
| Contact type | Female Sockets |
| pin position | 6 |
| spacing | 0.049"（1.25mm） |
| number of items, etc. in a total | 1 |
| leading | - |
| Installation type | free hanging |
| contact termination | cladding |
| Fastening type | Latch Holder |
| color | ferrous |
| characterization | - |
| insulating material | Polybutylene terephthalate (PBT) |
| operating temperature | -40°C ~ 105°C |
| note | without contacts |
| Basic Product Number | 505565 |
Molex 5055650601 Connector Product (Series) Profile:
The Molex Micro-Lock PLUS 505565 series connector is a high-precision receptacle-type connector for space-constrained electronic equipment and industrial applications. The connector features six pin positions with a pitch of 0.049" (1.25mm) and a single row design to ensure compact connection performance, making it particularly suitable for high-density circuit board applications.The Micro-Lock PLUS 505565 series connectors feature a female socket design and crimp contact termination to ensure a stable and reliable electrical connection. The fastening method utilizes a latch standoff to provide additional security and ensure that the connector maintains a stable contact even under vibration and external forces. The connector's housing is made of polybutylene terephthalate (PBT) material, which has good thermal resistance and mechanical strength, enabling reliable operation in an operating temperature range of -40°C to 105°C. The connector is available in a wide range of colors and sizes. The connectors do not contain contacts and are highly customizable by allowing the user to select the appropriate contact configuration as required.The Molex Micro-Lock PLUS 505565 series is widely used in automotive electronics, communication equipment and consumer electronics for applications requiring high-density and high-reliability connections.
Molex 5055650601 Connector Documentation and Media:
| Resource type | link (on a website) |
| specification |
Molex 5055650601 Connector Genuine|Replacement Related Description:
We specialize in stocking (Molex) brand connectors and are committed to providing our customers with quality, reliable connectivity solutions. Our products include genuine and high-performance alternatives that are rigorously tested to ensure stability and efficiency. Please feel free to contact us through the contact information below the documentation page!
