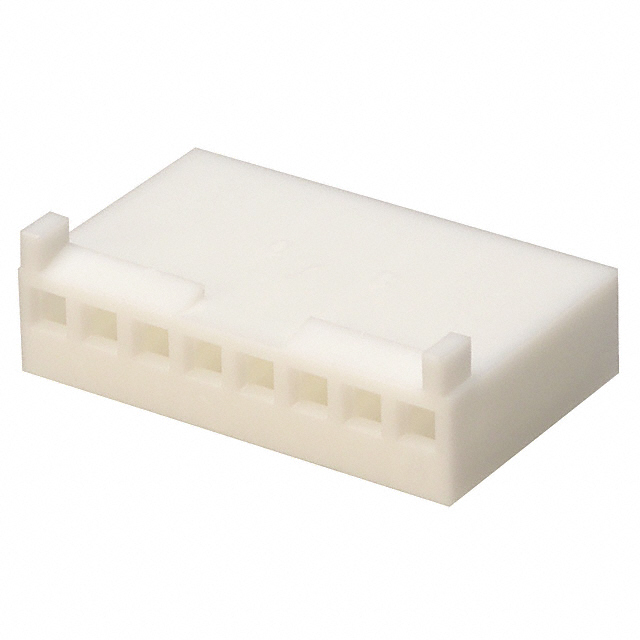

Molex 0022013087 Connector Product Overview:
 | makers | Molex |
| Manufacturer's Code | 0022013087 | |
| Product Description | CONN RCPT HSG 8POS 2.54MM,8 Rectangular Connector - Housing Receptacle White 0.100" (2.54mm) |
Molex 0022013087 Connector Product Attributes:
| typology | descriptive |
| form | Connectors, Interconnects |
| Rectangular connectors | |
| Rectangular Connector Shells | |
| makers | Molex |
| range | KK254, 2695 |
| Connector Type | sockets |
| Contact type | No distinction between male and female |
| pin position | 8 |
| spacing | 0.100"（2.54mm） |
| number of sets (of clothes, etc.) | 1 |
| leading | - |
| Installation type | free hanging |
| contact termination | cladding |
| Fastening type | Locking Pin Chute |
| color | fig. reactionary |
| characterization | Electrode marking |
| insulating material | Polyamide (PA), Nylon |
| operating temperature | -40°C ~ 105°C |
| note | without contacts |
| Basic Product Number | 002201 |
Molex 0022013087 Connector Product (Series) Profile:
The Molex KK254, 2695 Series Rectangular Connector is a high performance receptacle type connector used in a wide variety of electronic devices and automation systems. The connector has 8 pin positions, pitch 0.100" (2.54mm), using a single row design to ensure stable electrical connection. The product does not distinguish between male and female, flexible to adapt to different connection needs.SPOX 5195 series connectors with free hanging installation, suitable for a variety of equipment installation. The contacts are crimped to ensure a reliable and stable connection. The fastening type is a locking pin slide, which enhances the safety and stability of the connection. The connector housing is made of polyamide (PA) and nylon materials with excellent heat resistance and mechanical strength, and can withstand operating temperatures from -40°C to 105°C, adapting to complex working environments.
The products come standard with electrode markings for easy assembly and identification. Since the connector does not contain contacts, users can select the appropriate contacts according to the needs of a higher degree of customization.Molex KK254, 2695 series connectors are widely used in communications, computers, automotive electronics and other fields, to meet the needs of different industrial and electronic products for high-performance connections.
