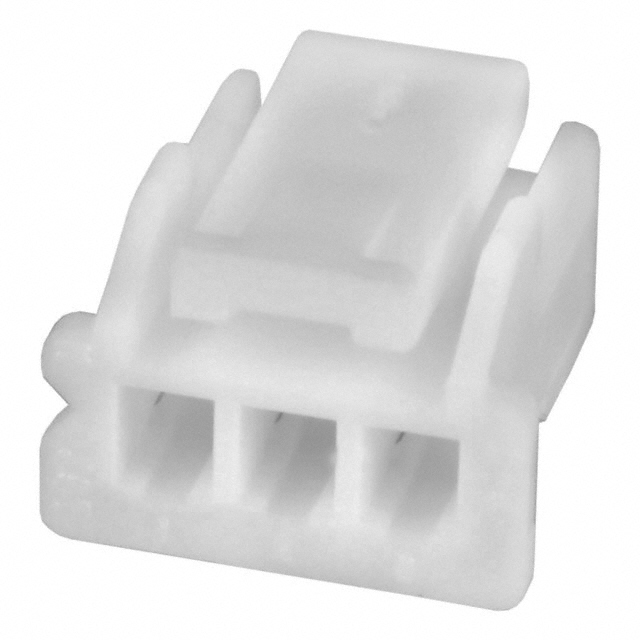

JST Connectors - Provides an overview of JST PAP-03V-S Connector products:
 | makers | JST |
| Manufacturer's Code | PAP-03V-S | |
| Product Description | CONN RCPT HSG 3POS 2.00MM,3 Rectangular Connector - Housing Receptacle Natural 0.079" (2.00mm) |
JST Connectors - Offers JST PAP-03V-S connector product attributes:
| typology | descriptive |
| form | Connectors, Interconnects |
| Rectangular connectors | |
| Rectangular Connector Shells | |
| makers | JST |
| range | PA |
| Connector Type | sockets |
| Contact type | Female Sockets |
| pin position | 3 |
| spacing | 0.079"（2.00mm） |
| number of sets (of clothes, etc.) | 1 |
| leading | - |
| Installation type | free hanging |
| contact termination | cladding |
| Fastening type | pin lock |
| color | natural |
| characterization | - |
| insulating material | Polyamide (PA66), Nylon 6/6 |
| operating temperature | -25°C ~ 85°C |
| note | without contacts |
| Basic Product Number | PAP-03V |
JST Connectors - Provides product (series) introduction of JST PAP-03V-S connectors:
The JST PAP-03V-S is a high quality rectangular connector housing designed to provide a reliable solution for electrical connection applications. The connector belongs to the PA series and features a receptacle design with 3 pin positions, a pitch of 0.079" (2.00mm), and a row count of 1, making it suitable for free-hanging mounting methods. The contact termination is crimped to ensure a stable and reliable connection. The connector housing is made of polyamide (PA66) with excellent heat resistance and mechanical strength, and is able to adapt to a wide range of operating temperatures from -25°C to 85°C. The natural color of the housing meets the requirements of industrial applications. The housing is designed in a natural color and complies with industrial application standards for a wide range of operating environments. The fastening type is pin-locking, which effectively improves the firmness and safety of the connection.JST PAP-03V-S does not contain contacts, so users can choose the appropriate contacts for use according to their needs. This connector is widely used in consumer electronics, automotive electronics, industrial equipment and other fields, providing high stability and high reliability connection solutions to meet the needs of long-term use.
JST Connectors - Provides JST PAP-03V-S connector documentation and media:
| Resource type | link (on a website) |
| specification | PA-F Series Datasheet |
JST Connectors-Provide JST PAP-03V-S Connector Genuine|Replacement Description:
We specialize in stocking (JST) brand connectors and are committed to providing our customers with high quality, reliable connectivity solutions. Our products include genuine and high-performance alternatives that are rigorously tested to ensure stability and efficiency. Please feel free to contact us through the contact information below the documentation page!
