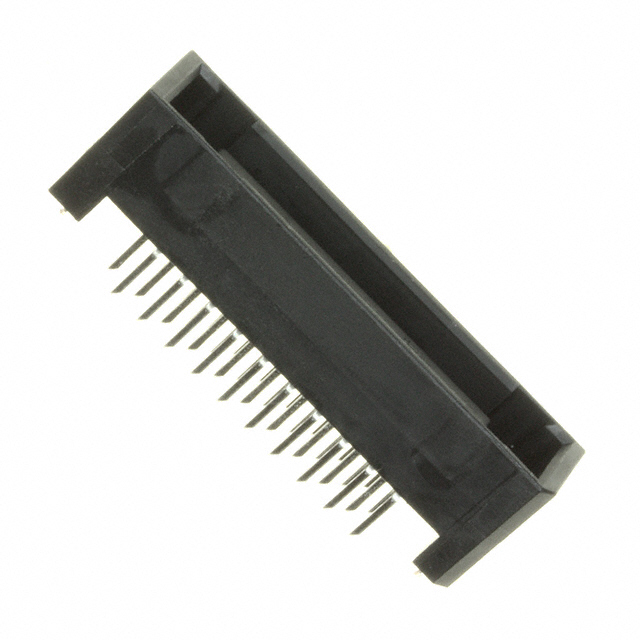

JAE TX25-40P-8ST-H1E Connector Product Overview:
 | makers | JAE
|
| Manufacturer's Code | TX25-40P-8ST-H1E | |
| Product Description | CONN PLUG 40POS VERT GOLD,40 pos Connectors Plugs, Center Contacts with Through Hole Gold Plated |
JAE TX25-40P-8ST-H1E Connector Product Attributes:
| typology | descriptive |
| form | Connectors, Interconnects |
| Rectangular connectors | |
| Array, Edge-Type, Mezzanine (Board-to-Board) | |
| makers | JAE Electronics |
| range | TX25 |
| Connector Type | Plug, Center Contact Strip |
| pin position | 40 |
| spacing | 0.050"（1.27mm） |
| number of sets (of clothes, etc.) | 2 |
| Installation type | vent |
| characterization | plank used to cover nail holes in cypress bark roofing |
| Contact surface treatment | gilt |
| Contact surface treatment thickness | 4.00µin（0.100µm） |
| Splice Stack Height | 14mm，18mm，20mm |
| board height | 0.441"（11.20mm） |
| Basic Product Number | TX25-40P |
JAE TX25-40P-8ST-H1E Connector Product (Series) Description:
JAE Electronics' TX25 Series rectangular connectors are high-performance board-to-board interconnect solutions designed for electronic devices that require precision connections. Featuring a center contact strip plug, the connector has a 40-pin configuration with a 1.27mm pin pitch for high-density connectivity needs in compact spaces. Its two rows of through-hole mounting design ensures stable electrical contact and mechanical robustness.The contact surface of TX25 connector is gold-plated with a surface treatment thickness of 0.100 μm, ensuring excellent electrical conductivity and oxidation resistance, suitable for long time and high frequency use. The product has a board lock function, which increases the stability of the connection and prevents disconnection. The splice stacking height can be selected from 14mm, 18mm or 20mm, adapting to different application requirements. With its reliable performance and flexible configuration, this connector is widely used in communication, industrial control, consumer electronics and other fields, providing high-quality connection solutions for complex circuits. The basic product number is TX25-40P, which is an indispensable and important component in precision electronic engineering.
