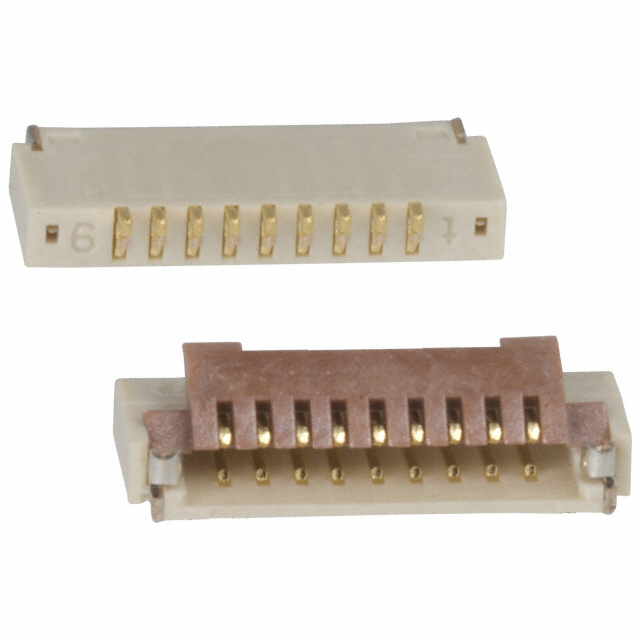

Hirose FH19C-9S-0.5SH(10) Connector Product Overview:
 | makers | Hirose |
| Manufacturer's Code | FH19C-9S-0.5SH(10) | |
| Product Description | CONN FFC BOTTOM 9POS 0.5MM R/A,9 pos FFC, FPC Connector Contacts, Bottom 0.020" (0.50mm) Surface Mount, Right Angle |
Hirose FH19C-9S-0.5SH(10) Connector Product Attributes:
| typology | descriptive |
| form | Connectors, Interconnects |
| FFC, FPC (Flat Flexible) Connectors | |
| FFC, FPC (Flat Flexible) Connector Assemblies | |
| makers | Hirose Electric Co Ltd |
| range | FH19C |
| wrap | Tape and Reel (TR) |
| Flat flexible type | FFC，FPC |
| Installation type | Surface Mount, Right Angle |
| Connector/Contact Type | Contacts, Bottom |
| pin position | 9 |
| spacing | 0.020"（0.50mm） |
| nock (of a bow) | soldered |
| FFC, FCB Thickness | 0.20mm |
| board height | 0.035"（0.88mm） |
| lockout function | trigger lock |
| Cable End Type | taper |
| Contact Material | phosphor bronze |
| Contact surface treatment | gilt |
| Housing Material | Liquid Crystal Polymers (LCP) |
| Actuator Materials | Liquid Crystal Polymer (LCP), Polyphenylene Sulfide (PPS) |
| characterization | Fixed Tail, Zero Insertion Force (ZIF) |
| rated voltage | 50V |
| operating temperature | -55°C ~ 85°C |
| Material flammability rating | UL94 V-0 |
| Rated current (amps) | 0.5A |
| Housing Color | rice-colored |
| Actuator Color | yellow-brown |
| Number of mating times | 20 |
Hirose FH19C-9S-0.5SH(10) Connector Product (Series) Description:
Hirose Electric Co Ltd FH19C Series FFC/FPC Connector is a high-performance surface-mount right-angle connector widely used in high-precision electronic devices. The connector supports FFC and FPC (Flat Flexible Cable) with 0.20mm thickness and features 9 pins and 0.50mm pitch to provide stable electrical contact. The connector utilizes a fixed solder tail and zero insertion force (ZIF) design to ensure low insertion and extraction forces for long life, and a trigger lock function to enhance connection reliability. The contacts of the connector are phosphor bronze and gold plated to ensure excellent electrical performance. The housing and actuator are made of liquid crystal polymer (LCP) and polyphenylene sulfide (PPS) materials, which provide high temperature resistance and an operating temperature range of -55°C to 85°C to meet harsh environmental requirements. In addition, the FH19C series has a UL94 V-0 flammability rating to ensure product safety. With a rated voltage of 50V and a rated current of 0.5A, it supports up to 20 mating cycles, making it suitable for scenarios that require high-frequency connection and disconnection. Its beige housing and brown actuator design provides clear visual identification, making it an ideal connection solution in the electronics industry.
