Categorization：Brand Connector
 | makers | TE |
| Manufacturer's Code | 794941-1 | |

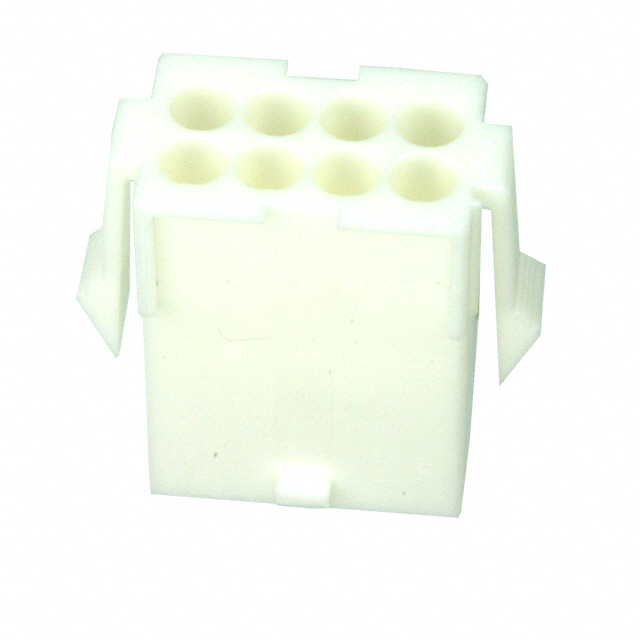

| Product Description | CONN RCPT HSG 8POS 4.14MM, 8 Rectangular Connector - Shell Receptacle Natural 0.163" (4.14mm) |
TE 794941-1 Connector Product Attributes:
| typology | descriptive |
| form | Connectors, Interconnects |
| Rectangular Connectors | |
| Rectangular Connector Shells | |
| makers | TE Connectivity AMP Connectors |
| range | Mini-Universal MATE-N-LOK |
| wrap | draft (of beer, as opposed bottled) |
| Connector Type | sockets |
| Contact type | Male or female |
| pin position | 8 |
| spacing | 0.163"（4.14mm） |
| number of items, etc. in a total | 2 |
| leading | 0.163"（4.14mm） |
| Installation type | Panel Mount, Snap-In |
| contact termination | cladding |
| Fastening type | Locking Pin Chute |
| color | natural |
| insulating material | Polyamide (PA), Nylon |
| operating temperature | -55°C ~ 105°C |
| note | without contacts |
| Basic Product Number | 794941 |
TE 794941-1 Connector Product (Series) Profile:
TE Connectivity AMP Connectors' Mini-Universal MATE-N-LOK series of rectangular connector housings is an efficient, flexible interconnect solution for a wide range of electronic equipment and industrial application scenarios. The socket connector design supports both male and female contacts, with 8 pin positions and a double row arrangement with a pitch and row spacing of 0.163" (4.14mm), making it compact and adaptable to a wide range of design requirements. This connector shell supports panel mounting and snap-in fixing, with locking pin slide design to ensure stable and reliable connection. The product is made of high-quality polyamide (PA) material with excellent insulation performance and durability, and can operate normally in a temperature range of -55°C to 105°C to meet a wide range of environmental requirements. The housing is natural in color and does not include contacts, allowing users to configure it flexibly to meet their actual needs.The Mini-Universal MATE-N-LOK series is ideal for power supplies, signal transmission, and many other areas due to its excellent performance and flexibility. The basic part number 794941 provides clear identification and traceability of the product.
TE 794941-1 Connector Documentation and Media:
| Resource type | link (on a website) |
| specification | 794941 |
TE 794941-1 Connector Connector Genuine|Replacement Description:
We specialize in stocking (TE) brand connectors and are committed to providing our customers with high quality, reliable connectivity solutions. Our products include genuine and high-performance alternatives that are rigorously tested to ensure stability and efficiency. Please feel free to contact us through the contact information below the documentation page!
