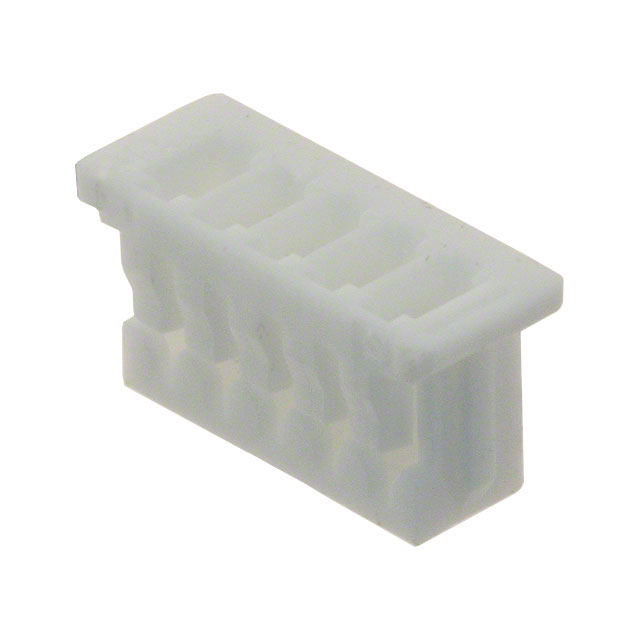

Molex 0510210500 Connector Product Overview:
 | makers | Molex |
Manufacturer's Code | 0510210500 | |
| Product Description | CONN RCPT HSG 5POS 1.25MM,5 Rectangular Connector - Housing Receptacle Natural 0.049" (1.25mm) |
Molex 0510210500 Connector Product Attributes:
| typology | descriptive |
| form | Connectors, Interconnects |
| Rectangular connectors | |
| Rectangular Connector Shells | |
| makers | Molex |
| range | PicoBlade 51021 |
| Connector Type | sockets |
| Contact type | Female Sockets |
| pin position | 5 |
| spacing | 0.049"（1.25mm） |
| number of items, etc. in a total | 1 |
| Installation type | free hanging |
| contact termination | cladding |
| Fastening type | friction lock |
| insulating material | Polybutylene terephthalate (PBTP) |
| operating temperature | -40°C ~ 105°C |
| note | without contacts |
| Basic Product Number | 51021 |
Molex 0510210500 Connector Product (Series) Profile:
The Molex PicoBlade 51021 series of rectangular connector housings is a miniaturized, high-precision connector for space-constrained electronic devices. As a receptacle type connector, it is equipped with a female socket with 5 pin positions and a pitch of only 0.049" (1.25mm), providing a reliable solution for compact designs. The housing is made of polybutylene terephthalate (PBTP) material with excellent heat resistance and mechanical strength for stable operation over a wide temperature range from -40°C to 105°C. The housing is designed for use in a wide variety of applications. The friction-lock fastening design ensures a strong and reliable connection, while the free-hanging installation provides flexibility for a wide range of application scenarios. Available in natural colors and shipped without contacts, the Molex PicoBlade series is ideal for high-density circuit connections in consumer electronics, communications equipment, and automotive electronics due to its compact size, durability, and high efficiency.
Molex 0510210500 Connector Documentation and Media:
| Resource type | link (on a website) |
| specification | 1.25mm Pitch Wire to Wire Prod Spec |
