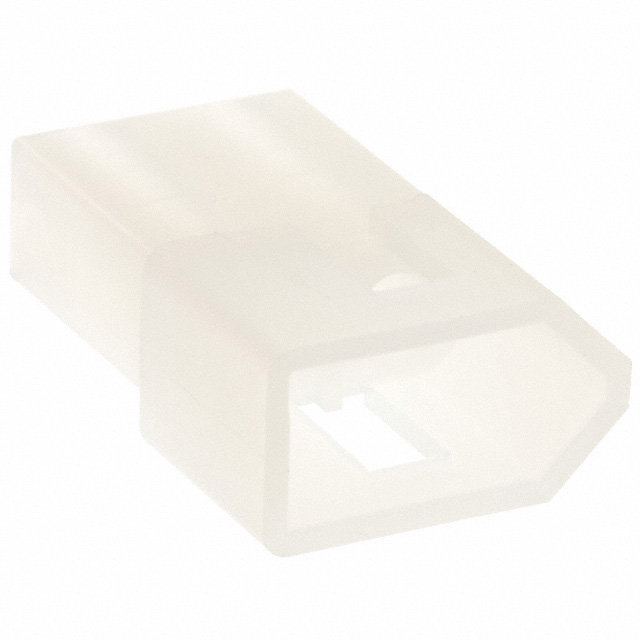

Molex 0003092022 Connector Product Overview:
 | makers | Molex |
Manufacturer's Code | 0003092022 | |
| Product Description | CONN PLUG HSG 2POS 6.30MM,2 Rectangular connector - Shell Plug Natural 0.248" (6.30mm) |
Molex 0003092022 Connector Product Attributes:
| typology | descriptive |
| form | Connectors, Interconnects |
| Rectangular connectors | |
| Rectangular Connector Shells | |
| makers | Molex |
| range | 1545 |
| Connector Type | plug |
| Contact type | Male or female |
| pin position | 2 |
| spacing | 0.248"（6.30mm） |
| number of items, etc. in a total | 1 |
| Installation type | free hanging |
| contact termination | cladding |
| Fastening type | pin lock |
| insulating material | Polyamide (PA66), Nylon 6/6 |
| operating temperature | -40°C ~ 105°C |
| note | without contacts |
| Basic Product Number | 309 |
Molex 0003092022 Connector Product (Series) Profile:
The Molex 1545 series rectangular connector housing is a high performance interconnect designed for a variety of electronic applications. As a plug-type connector, it supports both male and female contacts with two pin positions and a pitch of 0.248" (6.30mm) for higher current connection requirements. The housing is made of high-strength polyamide (PA66, nylon 6/6) with excellent durability and insulating properties, and is capable of operating over a wide temperature range from -40°C to 105°C. The housing is designed to be used in a wide variety of applications. The free-hanging mounting and pin-lock fastening design ensures a convenient and reliable connection process, suitable for a wide range of industrial and electronic equipment application scenarios. Available in a natural color housing without contacts, the Molex 1545 Series connectors can be customized with the appropriate terminals according to the actual needs of the user. 1545 Series connectors are the ideal solution for industrial automation, home appliances, and other applications due to their high quality and ease of use.
Molex 0003092022 Connector Documentation and Media:
| Resource type | link (on a website) |
| specification | 03-09-2022 |
