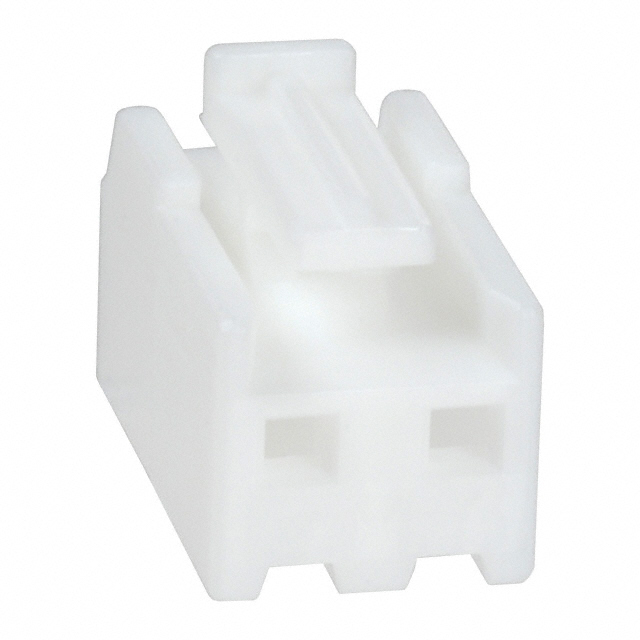

TE 1-1123722-2 Connector Product Overview:
makers | TE | |
Manufacturer's Code | 1-1123722-2 | |
Product Description | CONN PLUG HSG 2POS 3.96MM, 2 Rectangular Connector - Shell Plug Natural 0.156" (3.96mm) |
TE 1-1123722-2 Connector Product Attributes:
typology | descriptive |
form | Connectors, Interconnects |
Rectangular connectors | |
Rectangular Connector Shells | |
makers | TE Connectivity AMP Connectors |
range | Economy Power |
wrap | draft (of beer, as opposed bottled) |
part status | unsold |
Connector Type | plug |
Contact type | Female Sockets |
pin position | 2 |
spacing | 0.156"(3.96mm) |
number of sets (of clothes, etc.) | 1 |
Installation type | free hanging |
contact termination | cladding |
Fastening type | pin lock |
color | natural |
insulating material | Polyamide (PA66), Nylon 6/6 |
operating temperature | -25°C ~ 105°C |
note | without contacts |
Basic Product Number | 1123722 |
TE 1-1123722-2 Connector Product (Series) Profile:
The Economy Power Series rectangular connector housing from TE Connectivity AMP Connectors is a cost-effective interconnect for a wide range of electronic equipment and industrial applications. The connector is a plug-type design with a female socket that supports 2-pin free-hanging mounting with a pin pitch of 3.96mm (0.156") and a single-row layout for a compact and simple structure. The housing is made of polyamide (PA66, nylon 6/6) with excellent heat resistance and insulation properties, and can be operated stably over an operating temperature range of -25°C to 105°C to meet a wide range of environmental requirements. The connectors are designed to support crimp termination and are equipped with a pin-locking mechanism to ensure a secure connection. The product is supplied in bulk, but requires the user to separately select the appropriate contact assembly (contacts not included).
TE 1-1123722-2 Connector Documentation and Media:
Resource type | link (on a website) |
specification | EP Connector Product Spec |
