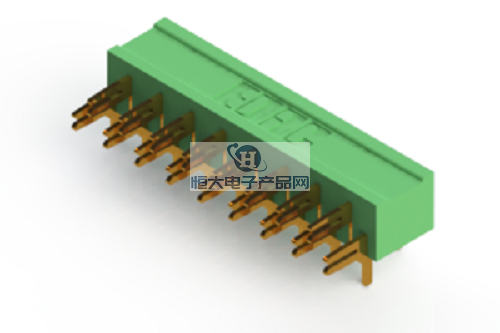

EDAC|EDAC Connectors|Canada/Yaday Electronics 422 Series Metal-to-Metal Card-Edge Connectors are a: Highly Reliable Interlocking|Green|Metal-to-Metal|Plugs|No Mounting Lugs connector. Key features include: 0.200 inch (5.08 mm) contact pitch x .300 inch (7.62 mm) row pitch with staggered grid; mounting into printed circuit boards with nominal thicknesses of .062 inch (1.57 mm) or .093 inch (2.36 mm) by soldering and/or riveting the printed circuit board tails; Edacon hermaphroditic contact pairing design ; mounting holes and guide pin options; Series 421 designed for non-snap-guided mating with Series 408 or 415, Series 422, Series 438 designed for snap-guided mating with Series 408 or 415, and Series 423 designed for mating with Series 424 or 438.
1, EDAC | EDAC Connectors | Canada / Yaday Electronics 422 Series Metal-to-Metal Card Edge Connectors main product performance details:
| hallmark | standardize |
| 0.200 inch (5.08 mm) contact spacing x .300 inch (7.62 mm) row spacing with staggered grid | Insulator Material:UL 94V-0 Diallyl Phthalate, Green |
| mounted into a printed circuit board having a nominal thickness of 0.062 inches (1.57 millimeters) or 0.093 inches (2.36 millimeters) by soldering and/or riveting the printed circuit board tails together | Contact Material:Copper Alloy |
| Edacon hermaphrodite contact pairing design | Contact plating: Gold plating over nickel on the entire contact |
| Mounting holes and guide pin options | Current rating:10A continuous |
| Series 421 is designed for non-snap-guided mating with Series 408 or 415, Series 422, Series 438 is designed for snap-guided mating with Series 408 or 415, and Series 423 is designed for mating with Series 424 or 438. | Contact resistance: 10 milliohms greater |
| Certified lead-free | Dielectric withstand voltage: 2000 VAC rms at sea level |
| Insulation resistance: 5000 megohm minimum | |
| Operating temperature: -65 degrees Celsius to +125 degrees Celsius | |
| Insertion force: 2 to 16 ounces (0.56 to 4.45 Newtons) per contact position | |
| Pull-out force: 2 to 16 oz (0.56 to 4.45 Nm) per contact position |
------------------------------------------------------------------------------------------------
2、EDAC|EDAC Connectors|Canada/Yaday Electronics 422 Series Metal-to-Metal Card Edge Connectors Main Part Number/Model Number List:
| 422-017-520-100 | 422-023-521-100 | 422-035-520-100 | 422-041-520-100 | 422-047-520-100 |
| 422-017-521-100 | 422-029-520-100 | 422-035-521-100 | 422-041-521-100 | 422-047-521-100 |
| 422-023-520-100 | 422-029-521-100 |
------------------------------------------------------------------------------------------------
3, Canada EDAC Connectors--EDAC|Canada/Yatech Electronics 422 Series Metal-to-Metal Card Edge Connectors This product seller:
Agency sales [Canada EDAC connectors - EDAC | Canada / Yade Electronic 422 series metal-to-metal card edge connectors] and the contents of the second item in the table list of all (material number / model) connector products; if you want to buy or understand what we can provide connector | harness | cable product solutions, welcome to contact us through the following way.
