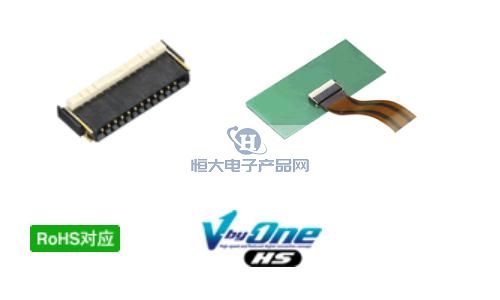

Panasonic|Panasonic Connectors|Panasonic Industrial Y5B/Y5BW series FPC/FFC connectors is a 0.5mm pitch, low height - space saving, top and bottom double contact structure connector; its main features are: the use of top and bottom double contact structure; the bottom of the connector can be freely wired; considering the reduction of production line time, the locking cover is in an open condition. Ships in the open position to minimize production line time; Y5BW locking retainer (Y5BW) with superior retention is available in addition to the FPC temporary retainer; Y5BW supports FPC only; V-by-One® HS counterpart; V-by-One®HS is a next-generation high-speed signaling interface developed by THine Electronics; V-by-One® is a registered trademark of THine Electronics. The main applications are: mobile devices, industrial equipment.
1、Panasonic|Panasonic Connectors|Panasonic Industrial Y5B/Y5BW Series FPC/FFC Connectors Main Product Performance Details:
| sports event | performance | terms | |
| Electrical Characteristics | rated current | 0.5A/terminal (except holding terminal) | |
| rated voltage | 50V AC/DC | ||
| withstand voltage | 250V AC 1 minute | Apply the rated voltage for 1 minute, there should be no short-circuit or damage under the detection current of 1mA. | |
| electrical insulation resistance | 1,000MΩ or more (initial) | Measurement using DC250V megohm for 1 minute | |
| contact resistance | 100mΩ or less | ||
| mechanical property | FPC Holding Power | Y5B : 0.2N/core x number of cores or more (initial) Y5BW : 0.2N/core x number of cores + 2.0N or more (initial) | Insert a suitable FPC and measure the greater load of the FPC pulled out towards the insertion axis with the lever closed. |
| Environmental Characterization | Use - Preservation - Transportation | －55～＋85℃ | Should be free of ice and condensation at low temperatures |
| Lifetime performance | Plug life | 20 times | Repeated plugging and unplugging frequency of 10 seconds/time or more |
------------------------------------------------------------------------------------------------
2、Panasonic|Panasonic Connectors|Panasonic Industrial Y5B/Y5BW Series FPC/FFC Connectors Main Part Number/Model Number List:
| AYF530265T | AYF530665T | AYF531265T | AYF532435 | AYF533065T |
| AYF530365T | AYF530835 | AYF531435 | AYF532665T | AYF533235 |
| AYF530435 | AYF530865T | AYF531465T | AYF532835 | AYF533265T |
| AYF530465T | AYF531035 | AYF531635 | AYF532865T | AYF533435 |
| AYF530535 | AYF531065T | AYF532265T | AYF533035 | AYF533435 |
------------------------------------------------------------------------------------------------
3, Japan Panasonic connectors--Panasonic|Japan Panasonic Industrial Y5B/Y5BW series FPC/FFC with connectors This product seller:
Acting sales [Japan Panasonic connectors--Panasonic|Japan Panasonic Industrial Y5B/Y5BW series FPC/FFC connectors] and all (material number/model) connectors in the table list in the content of the second item; If you want to buy or know what connectors | harness | cable products we can provide solutions, welcome to contact us through the following way! Us.
