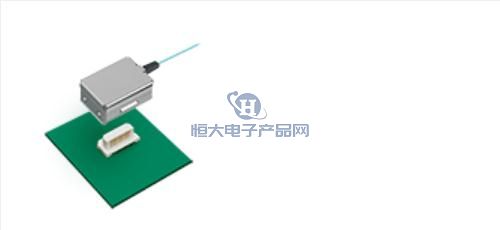

Panasonic|Panasonic Connectors|Panasonic Industrial V Series Optical Active Connector is a connector that easily realizes high-speed optical transmission within machines. Its main features are: equipped with an electrical/optical conversion function in the plug connector part; easy realization of anti-jamming countermeasures and electrical insulation; can realize high-speed, wide-area transmission; available in bi-directional 1ch/uni-directional 2ch; bi-directional 1ch: 20 Mbps ~ Max. 8 Gbps, uni-directional 2ch: 20 Mbps ~ Max. 16 Gbps (20 Mbps ~ Max. 8 Gbps/ch). ch). Main applications: High-speed transmission, anti-jamming, or electrical insulation for measurement equipment, image processing equipment, industrial robots, printing equipment, medical equipment, and so on.
1、Panasonic|Panasonic Connectors|Japan Panasonic Industrial V Series Optical Active Connectors Main Product Performance Details:
| sports event | performance | note |
| Ambient temperature | 0～＋70℃ | No freezing or condensation at low temperatures |
| custodial environment | -20 to +50°C (packed form) | No freezing or condensation at low temperatures |
| -20 to +85°C (single product form) | ||
| electrostatic resistance | ±2kV | Apply 3 times to the outer shell |
| C=100pF，R=1.5kΩ | ||
| C=150pF，R=330Ω | ||
| Electromagnetic resistance | Based on IEC 61000-6-2 specifications | — |
| electromagnetic radiation | Based on IEC 61000-6-4 specifications | — |
| Minimum Bend Radius of Optical Fiber | 15 mm | — |
| Allowable insertion force of the plug | Max. 20 N | — |
| Plug life | 50 times | Repeated plugging and unplugging frequency |
| Less than 200 strokes/hour | ||
| Laser Type | Class Laser | IEC 60825-1 Ed. 2：2007 |
| Wavelength 850 nm Laser power: <2.2 mW | IEC 60825-1 Ed. 3：2014 |
------------------------------------------------------------------------------------------------
2、Panasonic|Panasonic Connectors|Panasonic Industrial V Series Optical Active Connectors Main Part Number/Model Number List:
| AXK6S20447M1 | AYG4V10585M1 | AYG4V15085M3 | AYG5V10585M1 | AYG5V15085M3 |
| AXK6S20447M3 | AYG4V10585M3 | AYG4V1A085M1 | AYG5V10585M3 | AYG5V1A085M1 |
| AXK6S20447M5 | AYG4V15085M1 | AYG4V1A085M3 | AYG5V15085M1 | AYG5V1A085M3 |
------------------------------------------------------------------------------------------------
3, Japan Panasonic connectors--Panasonic|Japan Panasonic Industrial V Series Optical Active Connectors This product seller:
Agency sales [Japan Panasonic connectors - Panasonic | Japan Panasonic industrial V series optical active connectors] and the contents of the second item in the table list of all (material number / model) connector products; if you want to buy or understand what we can provide connectors | harness | cable product solutions, welcome to contact us through the following way.
