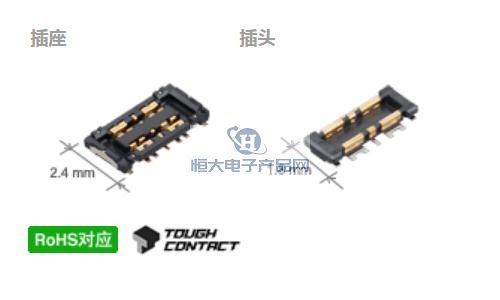

Panasonic|Panasonic Connectors|Panasonic Industrial B01 Series Substrate to FPC / Substrate to Substrate Connector is a low height 0.6mm/0.8mm, high current (6A) and high reliability connector. Its main features are: high current rating of 6A (3A/core x 2 cores); small size and low height, realizing high pull-out force. The main applications are: smart phones, tablet PCs, and other mobile devices.
1、Panasonic|Panasonic Connectors | Japan Panasonic Industrial B01 Series Substrate to FPC / Substrate to Substrate Connectors Main Product Performance Details:
| sports event | performance | terms | |
| Electrical Characteristics | rated current | Power supply terminals (3.0A/terminal) | |
| Signal terminal 0.3A/terminal | |||
| rated voltage | 30V AC/DC | ||
| withstand voltage | 150V AC 1 minute | Apply the rated voltage for 1 minute, there should be no short-circuit or damage under the detection current of 1mA. | |
| electrical insulation resistance | 1,000MΩ or more (initial) | Measurement using DC250V megohm for 1 minute | |
| contact resistance | 20mΩ or less (power terminal) 90mΩ or less (signal terminal) | Contact resistance measurement method according to JIS C 5402. | |
| mechanical property | insertion force | 40N or less | |
| pull-out force | 10N or more (H: 0.6, initial) | ||
| Environmental Characterization | Use - Preservation - Transportation | －55～＋85℃ | The temperature of the connector should be in accordance with the low temperature should be free of ice, condensation dew |
| Lifetime performance | Plug life | Mechanical life 30 times, contact resistance 20mΩ or less (power terminals), 90mΩ or less (signal terminals) Pull-out force 7N or higher | Repeated plugging and unplugging frequency under 200 times/hour |
------------------------------------------------------------------------------------------------
2、Panasonic|Panasonic Connectors|Panasonic Industrial B01 Series Substrate to FPC / Substrate to Substrate Connectors Main Part Number / Model Number Table:
| Material/Model | product name | number of cores | Combination height | Number of packages (inner boxes) | Number of packages (outer boxes) |
| AXF361500 | sockets | 6 | 0.6mm | 15,000 (1 reel) | 30,000 |
| AXF363500 | sockets | 6 | 0.8mm | 15,000 (1 reel) | 30,000 |
| AXF461500 | plug | 6 | 0.6mm | 15,000 (1 reel) | 30,000 |
| AXF463500 | plug | 6 | 0.8mm | 15,000 (1 reel) | 30,000 |
------------------------------------------------------------------------------------------------
3, Japan Panasonic Connectors--Panasonic|Japan Panasonic Industrial B01 Series Substrate to FPC / Substrate to Substrate Connectors This product seller:
Acting sales [Japan Panasonic connectors - Panasonic | Japan Panasonic Industrial B01 series of substrate to FPC / substrate to substrate connectors] as well as the contents of the second item in the table list of all (material number / type) connector products; if you want to buy or understand what we can provide connectors | wiring harness | wire and cable product solutions, welcome to contact through the following ways Us.
