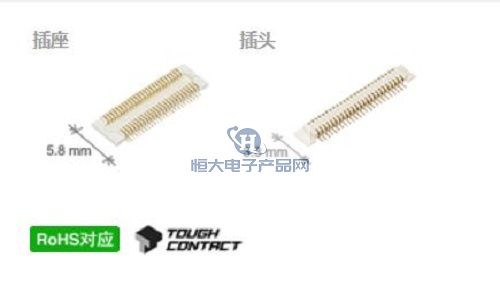

Panasonic|Panasonic Connectors|Panasonic Industrial P5KF series of narrow pitch connectors for substrate to FPC is a connector with a pitch of 0.5mm and a combination height of 1.5mm to 2.5mm. Its main features are: a wide range of product lineup; can be adapted to a variety of environments "TOUGH CONTACT" structure; the use of simple locking mechanism, a good sense of insertion and removal; the effective combination of length of 0.55mm. The main applications are: for mobile devices, industrial equipment.
1、Panasonic|Panasonic Connectors|Panasonic Industrial P5KF Series Narrow Pitch Connectors for Substrate to FPC Main Product Performance Details:
| sports event | performance | terms | |
| Electrical Characteristics | rated current | 0.5A/terminal (all cores total 10A or less) | |
| rated voltage | 60V AC/DC | ||
| withstand voltage | 150V AC 1 minute | Apply the rated voltage for 1 minute, there should be no short-circuit or damage under the detection current of 1mA. | |
| electrical insulation resistance | 1,000MΩ or more (initial) | Measured with a 500V DC megohmmeter | |
| contact resistance | 90mΩ or less | Measurement method of contact resistance according to JIS C 5402 | |
| mechanical property | insertion force | 0.981N/core x number of cores or less (initial) | |
| pull-out force | 0.0588N/core x number of cores or more | ||
| Environmental Characterization | Use - Preservation - Transportation | －55～＋85℃ | Should be free of ice and condensation at low temperatures |
| Lifetime performance | Plug life | 50 times | Repeated plugging and unplugging frequency under 200 times/hour |
------------------------------------------------------------------------------------------------
2、Panasonic|Panasonic Connectors|Panasonic Industrial P5KF Series Narrow Pitch Connectors for Substrate to FPC Main Part Number/Model Number Table:
| AXK5F00537YG | AXK5F16537YG | AXK5F30547YG | AXK5F50547YG | AXK5F80537YG |
| AXK5F00547YG | AXK5F16547YG | AXK5F34337YG | AXK5F60337YG | AXK5F80547YG |
| AXK5F10337YG | AXK5F20337YG | AXK5F34347YG | AXK5F60347YG | AXK6F00337YG |
| AXK5F10347YG | AXK5F20347YG | AXK5F34537YG | AXK5F24347YG | AXK6F00347YG |
| AXK5F10537YG | AXK5F20537YG | AXK5F34547YG | AXK5F60537YG | AXK6F00537YG |
| AXK5F10547YG | AXK5F20547YG | AXK5F40337YG | AXK5F60547YG | AXK6F00547YG |
| AXK5F12337YG | AXK5F24337YG | AXK5F40347YG | AXK5F70337YG | AXK6F10337YG |
| AXK5F12347YG | AXK5F24537YG | AXK5F40537YG | AXK5F70347YG | AXK6F10347YG |
| AXK5F12537YG | AXK5F24547YG | AXK5F40547YG | AXK5F70537YG | AXK6F10537YG |
| AXK5F12547YG | AXK5F30337YG | AXK5F50337YG | AXK5F70547YG | AXK6F10547YG |
| AXK5F16337YG | AXK5F30347YG | AXK5F50347YG | AXK5F80337YG | AXK6F12337YG |
| AXK5F16347YG | AXK5F30537YG | AXK5F50537YG | AXK5F80347YG | AXK6F12347YG |
------------------------------------------------------------------------------------------------
3, Japan Panasonic connectors--Panasonic|Japan Panasonic Industrial P5KF Series Narrow Pitch Connectors for Substrate to FPC This product seller:
Agency sales [Japan Panasonic connectors - Panasonic | Japan Panasonic Industrial P5KF series substrate to FPC with narrow pitch connectors] as well as the contents of the second item in the table list of all (material number / type) connector products; if you want to buy or understand what we can provide connector | harness | cable product solutions, welcome to contact us through the following ways .
