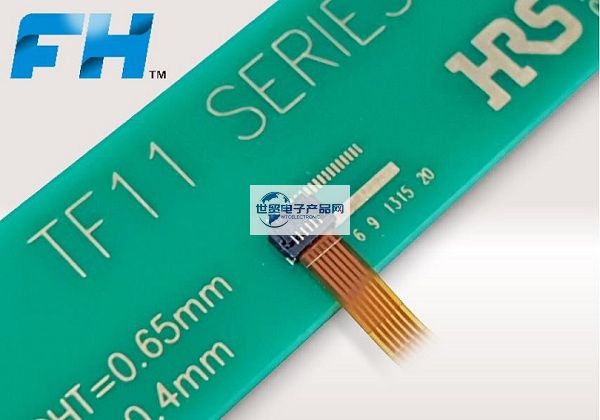

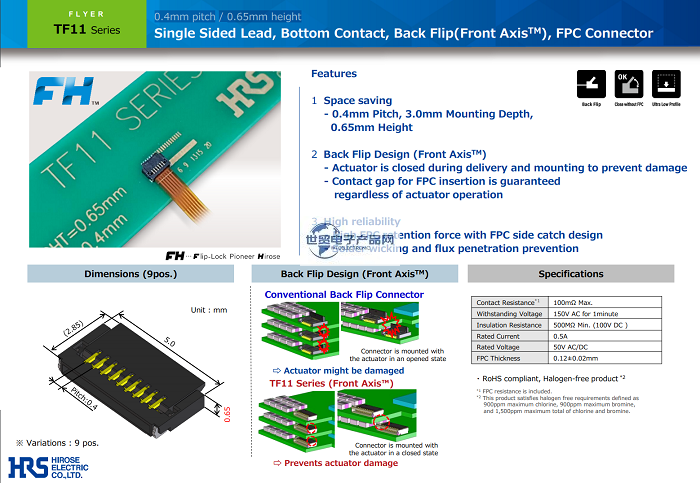

HRS|Hirose|Japan Hirose TF11 Series 0.4mm Pitch/0.65mm Height/Bottom Contact FPC Connector is a: 0.4mm Pitch/0.65mm Height, Single Sided Leads, Bottom Contact, Rear Flip (Front Axis TM), FPC Connector; Its main features are:1Space Saving-0.4mm Pitch, 3.0mm Mounting Depth. 0.65mm high;2 Back Flip Design (Front AxisTM)-Actuator closes during delivery and installation to prevent damage-Guaranteed contact clearance for FPC insertion; regardless of actuator operation;3 High Reliability-High FPC retention with FPC side latch design.

1, HRS | Hirose | Japan Hirose TF11 series 0.4mm pitch / 0.65mm height / lower contact FPC connector main product specification details:

Connector Type	PIN数
sockets	9
Mounting distance	Number of other PINs
0.4 mm	Open Pitch
Connector length (pitch direction)	0.4   mm
5.0 mm	(columns
Connector height	1
0.65 mm	Transmission Specifications
Connector width (longitudinal)	transmission speed
3.0 mm	(Max.) Operating Temperature Range
Contact position	85   ℃
lower contact (elec.)	(Min.) Operating Temperature Range
ZIF/Non-O ZIF/LIF	-55   ℃
ZIF	(nominal voltage
Recommended FFC/FPC	AC   50.0 V
FPC/FFC Connectors	(nominal voltage
FPC/FFC insertion direction	DC   50.0 V
level (of achievement etc)	rated current
movable type orientation	0.5   A
背

------------------------------------------------------------------------------------------------

2, Japan HRS | Hirose | Hirose TF11 series 0.4mm pitch / 0.65mm height / lower contact FPC connector main material number / type:

TF11-9S-0.4SH(800)

------------------------------------------------------------------------------------------------

3, Japan HRS connectors - HRS | Hirose | Hirose TF11 series 0.4mm pitch / 0.65mm height / lower contact FPC connector This product seller:

Agent sales [Japan HRS connectors - HRS | Hirose | Japan Hirose TF11 series 0.4mm pitch / 0.65mm height / under contact FPC connectors] and the contents of the second item in the table list of all (material number / model) connector products; if you want to buy or understand what we can provide connector | harness | cable product solutions, welcome to contact us through the following If you want to purchase or know what connectors, harnesses or cables we can provide, please feel free to contact us through the following ways.
