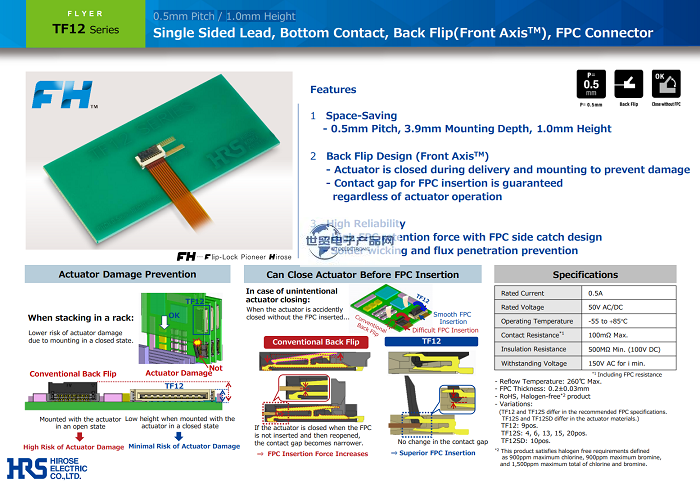

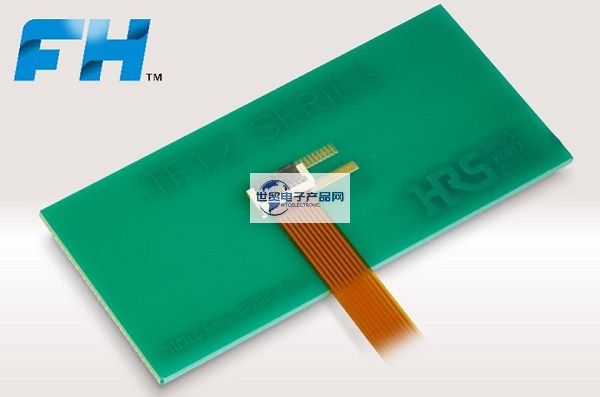

HRS|Hirose|Japan Hirose TF12 Series 0.5mm Pitch/1.0mm Height/Bottom Contact FPC Connector is a: 0.5mm Pitch/1.0mm Height, Single Sided Leads, Bottom Contact, Rear Flip (Front Axis TM), FPC Connector; Its main features are:1 Space Saving - Pitch 0.5mm, Mounting Depth 3.9mm, Height 1.0 mm2 Rear Flip Design (Front AxisTM) - Actuator closes during delivery and installation to prevent damage - Guaranteed contact clearance for FPC insertion regardless of actuator operation3 High Reliability - High FPC retention force and FPC side locking design - Prevents solder wick and flux penetration.

------------------------------------------------------------------------------------------------

1, HRS | Hirose | Japan Hirose TF12 series 0.5mm pitch / 1.0mm height / lower contact FPC connector main product specification details:

Connector Type	PIN数
sockets	4,   6, 9, 10, 13, 15, 20
Mounting distance	Number of other PINs
0.5 mm	Open Pitch
Connector length (pitch direction)	0.5   mm
4.2, 5.2, 6.7, 7.2, 8.7, 9.7, 12.2 mm	(columns
Connector height	1
1.0 mm	Transmission Specifications
Connector width (longitudinal)	transmission speed
3.9 mm	(Max.) Operating Temperature Range
Contact position	85   ℃
lower contact (elec.)	(Min.) Operating Temperature Range
ZIF/Non-O ZIF/LIF	-55   ℃
ZIF	(nominal voltage
Recommended FFC/FPC	AC   50.0 V
FPC/FFC Connectors	(nominal voltage
FPC/FFC insertion direction	DC   50.0 V
level (of achievement etc)	rated current
movable type orientation	0.5   A
背

------------------------------------------------------------------------------------------------

2, Japan HRS | Hirose | Hirose TF12 series 0.5mm pitch / 1.0mm height / lower contact FPC connector main material number / type:

TF12SD-10S-0.5SH(800)	TF12S-6S-0.5SH(800)	TF12S-15S-0.5SH(800)	TF12S-20S-0.5SH(800)	TF12S-4S-0.5SH(800)
TF12-9S-0.5SH(800)	TF12S-13S-0.5SH(800)

------------------------------------------------------------------------------------------------

3, Japan HRS connectors - HRS | Hirose | Hirose TF12 series 0.5mm pitch / 1.0mm height / lower contact FPC connector This product seller:

Agent sales [Japan HRS connectors - HRS | Hirose | Japan Hirose TF12 series 0.5mm pitch / 1.0mm height / under contact FPC connectors] and the contents of the second item in the table within the list of all (material number / model number) connector products; if you want to buy or understand what we can provide connector | harness | cable product solutions, welcome to contact us via the following If you want to purchase or know what connectors, harnesses or cables we can provide, please feel free to contact us through the following ways.
