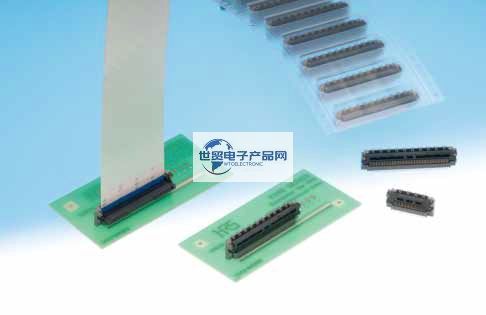

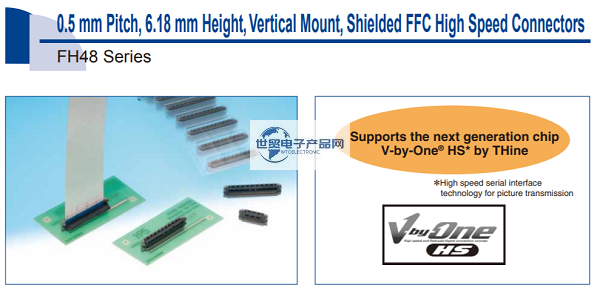

HRS|Hirose|Hirose FH48 Series 0.5mm Pitch/6.18mm Height/Vertical Pluggable FPC Connector is a 0.5 mm pin pitch, 6.18 mm height, vertical assembly, shielded/high speed FFC connector; its main features are: 1. Shielded FFC with matched characteristic impedance; 2. Impedance matched terminal design; 3. Highly reliable and safe construction; 4. Simplified operation with flip-top locking system; 5. Suitable for automated board layout; 6. Halogen free. Highly reliable and secure construction; 4. Simplified operation with flip-top locking system; 5. Suitable for automated board layout; 6. Halogen free.
1, HRS | Hirose | Japan Hirose FH48 series 0.5mm pitch / 6.18mm height / vertical insertion and removal FPC connector main product specification details:
| Connector Type | PIN数 |
| sockets | 20, 21, 30, 31, 40, 50, 68 |
| Mounting distance | Number of other PINs |
| 0.5 mm | Open Pitch |
| Connector length (pitch direction) | 0.5 mm |
| 15.0, 15.5, 20.0, 20.5, 25.0, 30.0, 39.0 mm | (columns |
| Connector height | 1 |
| 6.18 mm | Transmission Specifications |
| Connector width (longitudinal) | V-by-One HS |
| 4.7 mm | transmission speed |
| Contact position | (Max.) Operating Temperature Range |
| vertical type | 85 ℃ |
| ZIF/Non-O ZIF/LIF | (Min.) Operating Temperature Range |
| ZIF | -40 ℃ |
| Recommended FFC/FPC | (nominal voltage |
| Shielded FFC | AC 50.0 V |
| FPC/FFC insertion direction | (nominal voltage |
| vertical type | DC 50.0 V |
| movable type orientation | rated current |
| vertical type | 0.5 A |
------------------------------------------------------------------------------------------------
2, Japan HRS | Hirose | Hirose FH48 series 0.5mm pitch / 6.18mm height / vertical insertion and removal of FPC connector main material number / type:
| FH48-20S-0.5SV | FH48-30S-0.5SV | FH48-40S-0.5SV | FH48-50S-0.5SV | FH48-68S-0.5SV |
| FH48-21S-0.5SV | FH48-31S-0.5SV |
------------------------------------------------------------------------------------------------
3, Japan HRS connectors - HRS | Hirose | Hirose FH48 series 0.5mm pitch / 6.18mm height / vertical plug FPC connectors This product seller:
Agent sales [Japan HRS connectors - HRS | Hirose | Japan Hirose FH48 series 0.5mm pitch / 6.18mm height / vertical plugging FPC connectors] as well as the contents of the second item in the table list of all (material number / model) connector products; if you want to buy or understand what we can provide connector | harness | cable product solutions, welcome to contact us through the following way. If you want to purchase or know what connectors, harnesses or cables we can provide, please feel free to contact us through the following ways.
