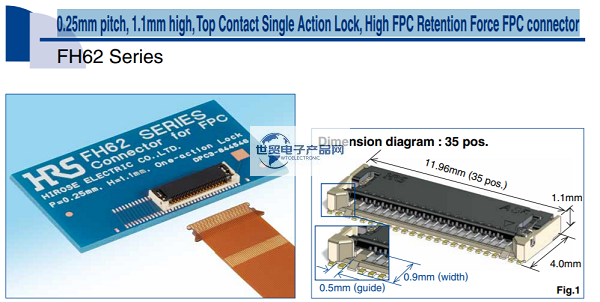

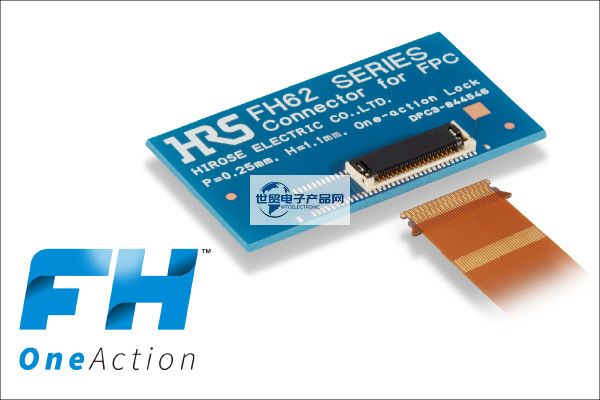

HRS|Hirose|Japan Hirose FH62 Series 0.25mm Pitch/1.1mm Height/Self-Locking FPC Connector is a: 0.25mm Pitch, 1.1mm Height, Top-Touch Single-Action Locking, High FPC Retention FPC Connector with the following main features:1. Space-saving design・Space-saving design with 0.25mm pitch and 4.0mm width.2. Automatic single-action lock design・Easy-to-use single-action lock design, inserted into FPC after mounting.(Release the lock by operating or opening the locking lever when removing the FPC.) ・No need to operate the locking lever when fitting the FPC. Can be operated with one hand. ・It is not necessary to operate the locking lever to fit the FPC. This helps to shorten assembly time. ・It is not necessary to operate the locking lever when assembling FPC. Operation will not damage the locking lever. ・It is not necessary to operate the locking lever when assembling FPC. The absence of a lever during insertion eliminates malfunctions caused by movement of the FPC during locking.3. High FPC retention force・The grooves on both sides of the FPC are secured by the locking lever, which creates a high FPC retention force despite its small size.4. Easy to insert the FPC・The wide guide rails allow for easy insertion of the FPC.5. Supports 0.3mm-thick FPCs・The design accommodates rigid 0.3mm-thick FPCs, which helps to Prevents deformation of FPC during insertion.6. Supports high-speed transmission/Supports high-speed transmission with excellent impedance characteristics. By using the same type of contacts (even-even contacts, odd-odd contacts) to create differential pairs, excellent transmission characteristics can be obtained, supporting eDP (ver1.4), MIPI (D-PHY), and USB3.0 standards.


1, HRS | Hirose | Japan Hirose FH62 series 0.25mm pitch / 1.1mm height / self-locking FPC connector main product specification details:


Connector TypePIN数
sockets13, 17, 21, 31,   35, 39, 41, 55, 61
Mounting distanceNumber of other PINs
0.5 mmOpen Pitch
Connector length (pitch direction)0.25 mm
6.46,   7.46, 8.46, 10.96, 11.96, 12.96, 13.46, 16.96, 18.46 mm(columns
Connector height2
1.1 mmTransmission Specifications
Connector width (longitudinal)transmission speed
4.0 mm(Max.) Operating Temperature Range
Contact position85 ℃
upper contact(Min.) Operating Temperature Range
ZIF/Non-O   ZIF/LIF-55 ℃
Recommended FFC/FPC(nominal voltage
FPCAC 30.0 V
FPC/FFC insertion direction(nominal voltage
level (of achievement etc)DC 30.0 V
movable type orientationrated current

0.3 A

------------------------------------------------------------------------------------------------

2, Japan HRS | Hirose | Hirose FH62 series 0.25mm pitch / 1.1mm height / self-locking FPC connector main material number / type:

FH62-13S-0.25SHW(99)FH62-39S-0.25SHW(99)FH62-21S-0.25SHW(10)FH62-41S-0.25SHW(10)FH62-17S-0.25SHW(10)
FH62-17S-0.25SHW(99)FH62-41S-0.25SHW(99)FH62-13S-0.25SHW(10)FH62-61S-0.25SHW(10)FH62-35S-0.25SHW(99)
FH62-21S-0.25SHW(99)FH62-55S-0.25SHW(99)FH62-39S-0.25SHW(10)FH62-31S-0.25SHW(10)FH62-35S-0.25SHW(10)
FH62-31S-0.25SHW(99)FH62-61S-0.25SHW(99)FH62-55S-0.25SHW(10)

------------------------------------------------------------------------------------------------

3, Japan HRS connectors - HRS | Hirose | Hirose FH62 series 0.25mm pitch / 1.1mm height / self-locking FPC connector This product seller:

Agent sales [Japan HRS connectors - HRS | Hirose | Japan Hirose FH62 series 0.25mm pitch / 1.1mm height / self-locking FPC connectors] and the contents of the second item in the table list of all (material number / model) connector products; if you want to buy or understand what we can provide connector | harness | cable product solutions, welcome through the following If you want to purchase or know what connectors, harnesses or cables we can provide, please feel free to contact us through the following ways.
